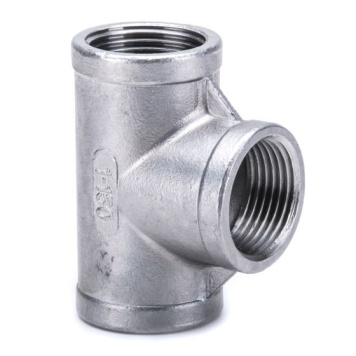

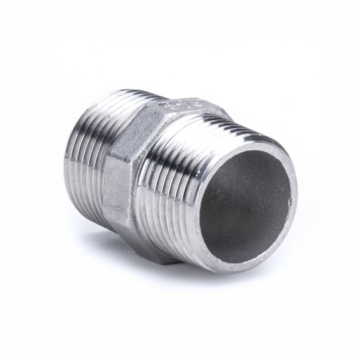

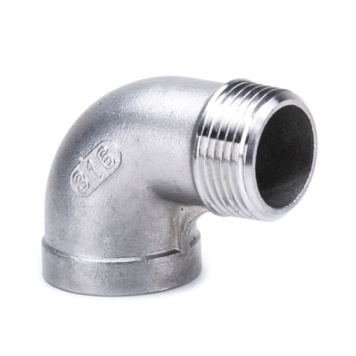

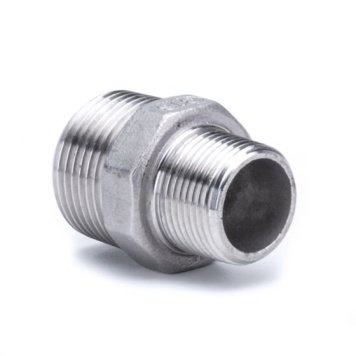

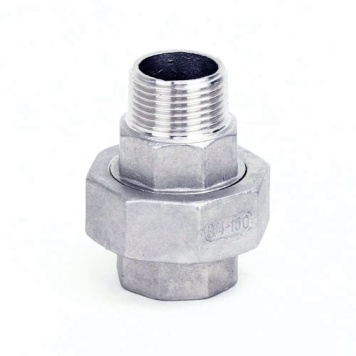

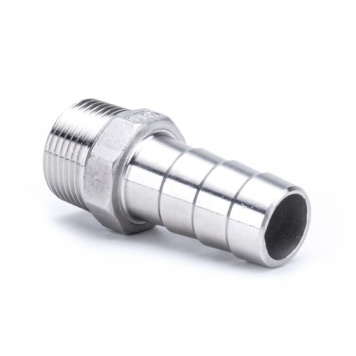

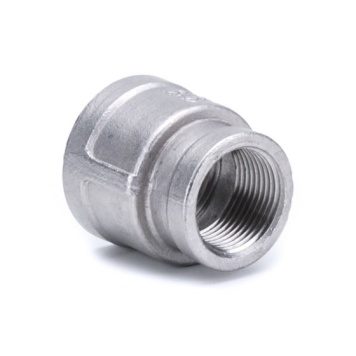

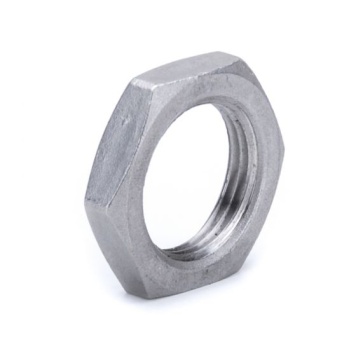

150lb 316 Stainless Steel Pipe Fittings

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: stainless steel - CF8M (316)
  • 150lb BSP threaded fittings
  • Conform to ISO 4144 standard
  • Manufactured by investment cast or from welded tube
  • Operating temperature range of -20°C to 220°C

Technical Info:

Temperature / Pressure Ratings

Temperature (°C) Non-Shock Maximum Pressure (bar)
-20 to 40 20
100 16.5
150 15
200 14
-220 13.5



Please note:

Pressure for intermediate temperatures may be determined by interpolation.

Indicated temperatures are those of internal fluid.

Piping loads, stresses and moments are not taken into account.

Useful Info:

These 150lb Class fittings are all BSP threaded (female are parallel, male are tapered) and are designed for use in low pressure applications.

These stainless steel fittings are suitable for use in applications such as petrochemical, water distribution, paper production, marine, and food and beverage.

We also supply non-threaded stainless steel pipe for use with these fittings.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
