Plastlock Coupling Plastic to Metal - Below Ground
Useful Information

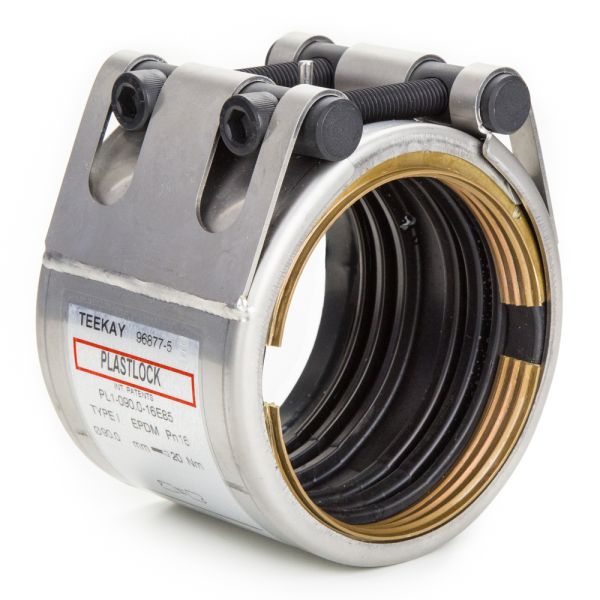

Plastlock adaptors, from Teekay, are used to connect plastic pipe and metal pipe together with speed and ease without the need for gluing or fusion technology.
They incorporate Teekay multiple seal gaskets with a specific gripping ring either side, designed to grip plastic pipes one side and metal pipes the other.
These adaptors are suitable for use with plastic pipe including Polyethylene, Polypropylene, polybutylene, PVC-C, PVC-U and ABS, as well as metal pipe including carbon steel, stainless steel, copper and copper nickel.
Â
Manufacturer | Teekay |
Casing | AISI 304/DIN 1.4301 |
Fasteners | AISI 316/316L |
Gasket | EPDM/NBR/HNBR/Silicone |
Pressure Rating | up to 16 bar |
Type | 2 - Below ground |
Sizes | 40mm - 315mm |
Standards | WIS-4-24-01 BS 8561:2013 |
Â
Product Code | D1 Metal x Plastic (mm) | W1 (mm) | PN | D2 (mm) | D3 (mm) | D4 (mm) | Screw Size | Weight (kg) |
402897 | 42.4 x 40 | 88 | 16 | 60 | 76 | 132 | 2 x M8 | 0.64 |
402898 | 48.3 x 50 | 88 | 16 | 67 | 84 | 136 | 2 x M8 | 0.69 |
402899 | 60.3 x 63 | 88 | 16 | 80 | 96 | 145 | 2 x M8 | 0.91 |
402900 | 76.1 x 75 | 88 | 16 | 94 | 109 | 185 | 2 x M10 | 0.96 |
402901 | 88.9 x 90 | 88 | 16 | 107 | 123 | 193 | 2 x M10 | 1.06 |
402902 | 108 x 110 | 88 | 16 | 126 | 144 | 208 | 2 x M10 | 1.42 |
402903 | 114.3 x 110 | 89 | 16 | 133 | 149 | 211 | 2 x M10 | 1.51 |
402904 | 125 x 125 | 115 | 16 | 159 | 184 | 241 | 2 x M12 | 2.66 |
402905 | 139.7 x 140 | 116 | 16 | 159 | 184 | 241 | 2 x M12 | 2.66 |
402906 | 168.3 x 160 | 116 | 16 | 189 | 214 | 265 | 2 x M12 | 3.41 |
402907 | 180 x 180 | 119 | 10 | - | - | - | - | - |
402908 | 219.3 x 200 | 120 | 10 | 226 | 252 | 321 | 2 x M16 | 6.70 |
402909 | 219.3 x 225 | 120 | 10 | 251 | 278 | 342 | 2 x M16 | 6.90 |
402910 | 273 x 250 | 120 | 10 | 276 | 302 | 364 | 2 x M16 | 7.30 |
402911 | 323.9 x 315 | 120 | 10 | 341 | 368 | 418 | 2 x M16 | 9.20 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
