Repair Coupling Plastic / Metal - Above Ground

Useful Information

Repair couplings, from Teekay, are used to fix damaged pipework without the need to depressurize the system.

These couplings are suitable for use with plastic and metal pipe including carbon steel, cast and ductile iron, stainless steel, copper, cuniferm GRP, asbestos cement, HDPE, MDPE, PVC, PVC-U and ABS.

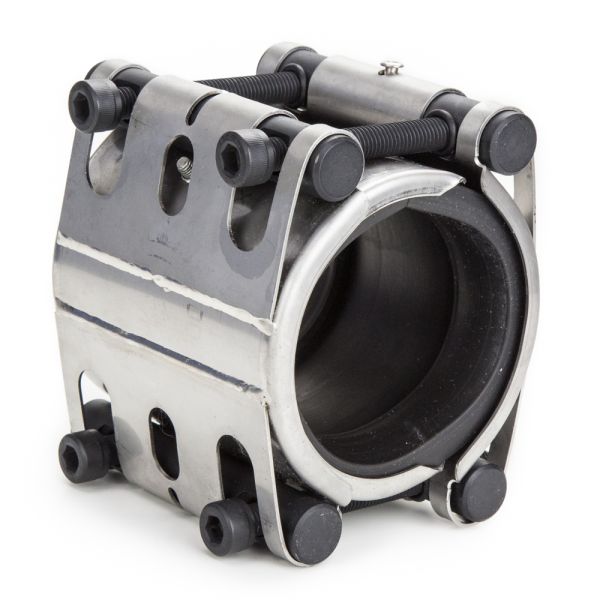

Please note: The product image in this category depicts SKU's 402927, 402928 and 402929. Our other repair couplings have 2 screws instead of 4.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners Alloy Steel, Coated
Gasket EPDM/NBR/H-NBR/FKM/VMQ
Pressure Rating up to 16 bar
Type 1 - Above ground
Sizes 44mm - 141mm



teekay-repair-coupling

Product Code D1 (mm) W1 (mm) PN W2 (mm) D2 (mm) D3 (mm) No. of Screw Approx. Weight (kg)
402927 44 - 54 85 16 42 64 - 74 132 - 142 4 2.20
402928 55 - 65 85 16 42 75 - 85 143 - 153 4 2.60
402929 70 - 80 85 16 42 90 - 100 158 - 168 4 2.80
402930 85 - 95 140 16 80 113 - 123 173 - 183 2 2.50
402931 105 - 115 140 16 80 133 - 143 193 - 203 2 2.80
402932 131 - 141 140 16 80 159 - 169 219 - 229 2 3.00



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402927TK Repair Coupling T1 16 Bar 44mm to 54mm £127.36 40% £76.42
402928TK Repair Coupling T1 16 Bar 55mm to 65mm £127.36 40% £76.42
402929TK Repair Coupling T1 16 Bar 70mm to 80mm £135.74 40% £81.44
402930TK Repair Coupling T1 16 Bar 85mm to 95mm £175.85 40% £105.51
402931TK Repair Coupling T1 16 Bar 105mm to 115mm £183.41 40% £110.05
402932TK Repair Coupling T1 16 Bar 131mm to 141mm £186.30 40% £111.78
