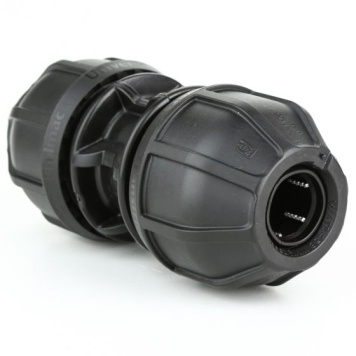

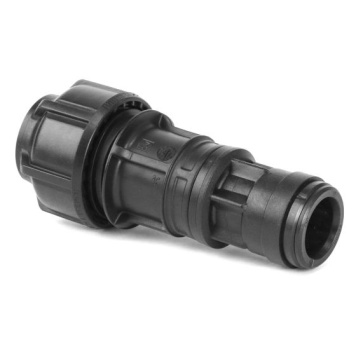

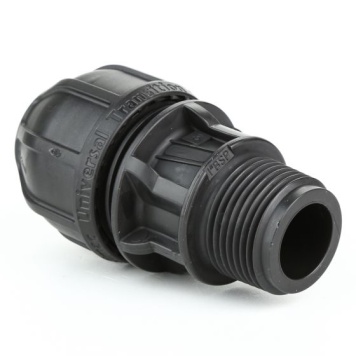

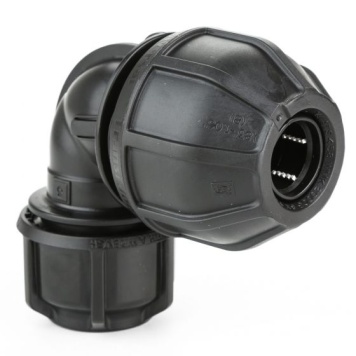

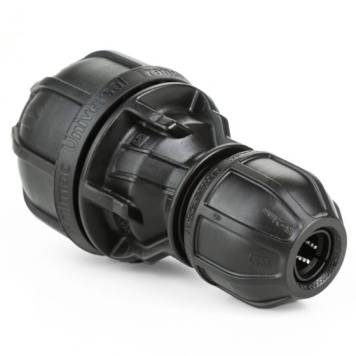

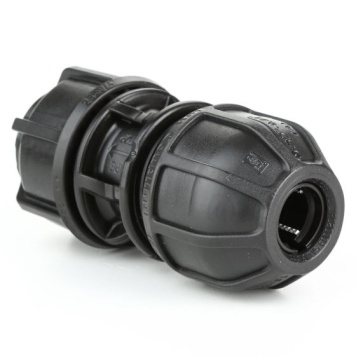

Philmac Universal Transition Fittings provide a truly versatile solution for connecting a wide range of pipe materials within cold water systems. Manufactured to the highest standards, these WRAS-approved fittings are designed to join PVC, copper, ABS, stainless steel, lead, polyethylene, and galvanised iron without the need for pipe modification or specialist tools. Constructed from robust and corrosion-resistant materials, Philmac’s Universal Transition range is ideal for retrofitting, repairs, and mixed-material networks—offering a secure and watertight connection under working pressures of up to 12 bar.
Application
Retrofit & Upgrade Projects: Ideal for replacing or adapting old installations using dissimilar pipe materials.
Water Service Connections: Used in residential and commercial systems to ensure leak-free joins between copper, PVC, or PE pipes.
Civil Infrastructure & Utilities: Suitable for underground and above-ground water supply networks requiring mixed material compatibility.
Maintenance & Emergency Repairs: Provides fast, reliable jointing when replacing sections of aged or incompatible pipework.
Technical Specification
Body Material: Polypropylene
Spacer: Polypropylene
Split Ring: Acetal
Seal: Nitrile rubber (NBR)
Maximum Pressure: 12 bar at 20°C
Temperature Range: 0°C to 40°C (cold water applications only)
Connection Type: Compression with internal grip and seal technology
Size Range: Available to suit a variety of imperial and metric pipe sizes
Installation Overview
Prepare the Pipe
Cut the pipe square and remove any burrs. Ensure the pipe surface is clean and dry; no chamfering required.
Insert Pipe
Push the pipe into the fitting until the first point of resistance. The fitting automatically adjusts to grip and seal on the pipe material.
Tighten
Hand-tighten the nut, then complete tightening using a strap wrench. No special tooling or insert is needed for most compatible materials.
Final Checks
Verify the connection is fully seated and aligned. Conduct a pressure test to confirm leak-free performance before backfilling or commissioning.
