Plasson Manifolds & Metering
Plasson Manifolds & Metering products provide a complete and efficient solution for distributing and monitoring water supply across multiple outlets. Available as individual components or in fully assembled kits, the range includes high-quality manifolds, water meters, and accessories designed for use in residential, commercial, and light industrial applications. These WRAS-approved components offer flexibility, modularity, and reliability, enabling easy installation and accurate consumption tracking in multi-occupancy buildings and site-wide water networks.
Application
- Residential Metering: Commonly used in apartment blocks, flats, and housing estates to provide individual metered water supplies.
- Commercial & Light Industrial Premises: Supports multiple point-of-use connections in retail units, office blocks, and warehouses.
- Temporary Installations: Ideal for monitoring water usage on construction sites or in temporary accommodation facilities.
- Irrigation & Outdoor Systems: Allows control and metering of multiple irrigation zones from a single water source.
Technical Specification
- Product Range:

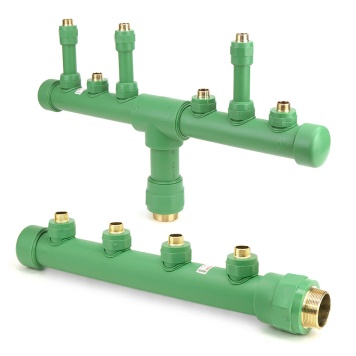

- Manifolds (various port configurations)

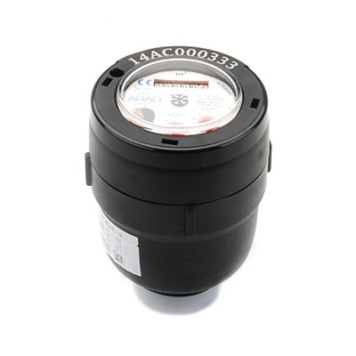

- Water meters (WRAS approved, cold water use)

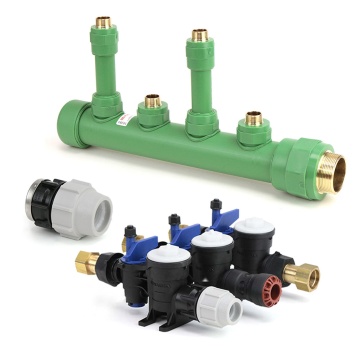

- Meter carrier kits and brackets
- Isolation valves and adaptors
- Material: High-quality polymers and brass components (varies by product)
- Port Sizes: Typically 20mm to 32mm inlet/outlet sizes
- Connection Type: Compression, BSP threaded, or pushfit (depending on configuration)
- Pressure Rating: Up to 16 bar at 20°C
- Standards & Approvals:
- WRAS approved for potable water applications
- Conforms to relevant BS and EN standards for water metering components
- Mounting: Wall or surface-mountable with compatible brackets or meter carriers
Installation Overview
- Planning & Layout
Determine the number of outlets or zones required.
Select an appropriate manifold configuration and meter type.
- Mounting
Fix the manifold to a secure wall or frame using designated brackets or meter carriers.
Ensure adequate spacing for future maintenance and meter reading access.
- Pipe Connections
Connect inlet and outlet ports using compatible compression or threaded fittings.
Use PTFE tape where required on threaded joints; avoid sealing pastes.
- Meter Installation
Insert meter into carrier or manifold section, ensuring correct flow direction.
Secure with locking rings or adaptors as provided.
- Commissioning & Testing
Once all connections are secure, pressurise the system and check for leaks.
Verify water meter operation and ensure isolation valves are functioning correctly.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
