K-Line Connect Threaded Iron Pipe Fittings

K-Line Connect Malleable Iron Pipe Fittings - sold by Pipestock

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufactured by K-Line Connect
  • Material: malleable iron (black and galvanised)
  • British Standard Pipe Tapered (BSPT) threaded fittings
  • Maximum operating pressure: 25 bar
  • Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
  • BSI Kitemark & WRAS approval
  • Conformity to BS EN 10241:2000 and BS1526
  • Tapered threads conform to ISO7-1 & EN 10226-2 standard

Useful Info:

These K-Line Connect tapered thread malleable iron pipe fittings are ideally suited for sprinkler systems as well as the conveyance of water, potable water, steam, and gas.

These fittings are available with two types of finish:-

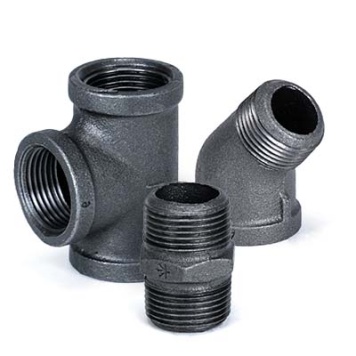

  • Black - protects against post-installation rust, suited for gaseous applications

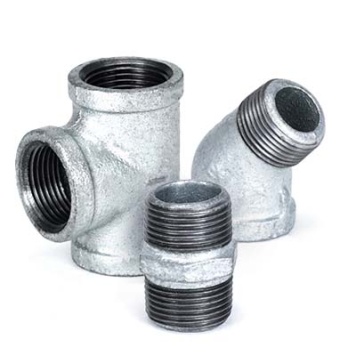

  • Galvanised - hot-dip zinc coated for additional anti-corrosive protection, meeting ASTM A153 requirements



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
