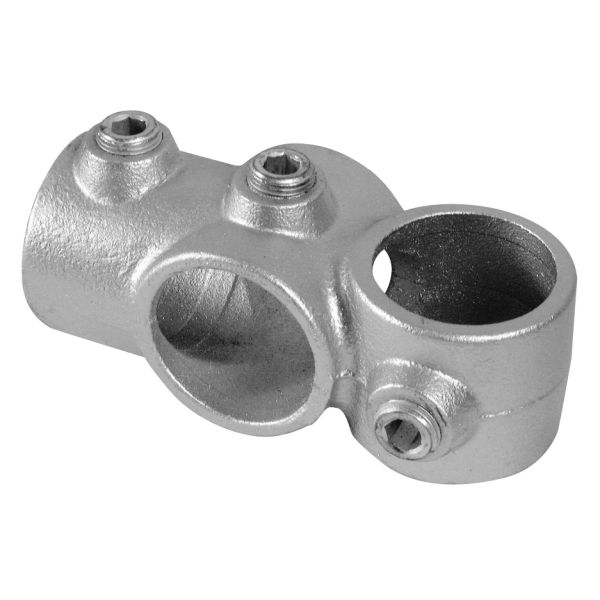

Combination Socket - 165

Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron
  • Manufactured to BS EN 1562 1997
  • Galvanised to BS EN 1461 1999
  • Grub Screws Supplied

Combination Socket 165.jpg

Prodct Code A (Clamp Size) A (Clamp Size) C (mm) D (mm) E (mm)
359324 1 1 34 38 42
359325 3 3 49 46 60
359326 5 5 67 61 85



Pipe Clamp Dimensions
Clamp Size Tube Outside Diameter (mm) Nominal Bore (mm) Nominal Bore (inch)
1 26.9 20 ¾
2 33.7 25 1
3 42.4 32
4 48.3 40
5 60.3 50 2



Useful Info:

Allen and Ratchet Keys available.

Multi applications including, Safety Railings, Handrails, Racking, Cycle Racks, etc.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
