Manifolds & Wall Brackets

Introduction

Prevost Manifolds and Wall Brackets are essential components in compressed air distribution systems, providing efficient, reliable, and secure connections for pneumatic tools and equipment. Designed for industrial and workshop applications, these high-performance aluminium components enhance airflow efficiency, pressure stability, and ease of installation, making them indispensable for optimising compressed air networks.

Prevost Manifolds and Wall Brackets are widely used in:

• Manufacturing Facilities – Supporting multiple workstations with dedicated air supply points.
• Workshops & Garages – Enabling quick and organised air tool connections.
• Automated Production Lines – Providing reliable air distribution for robotic and pneumatic systems.
• Food & Beverage Processing – Ensuring clean, contamination-free air supply.
• Pharmaceutical & Laboratory Environments – Maintaining precise air control for sensitive applications.

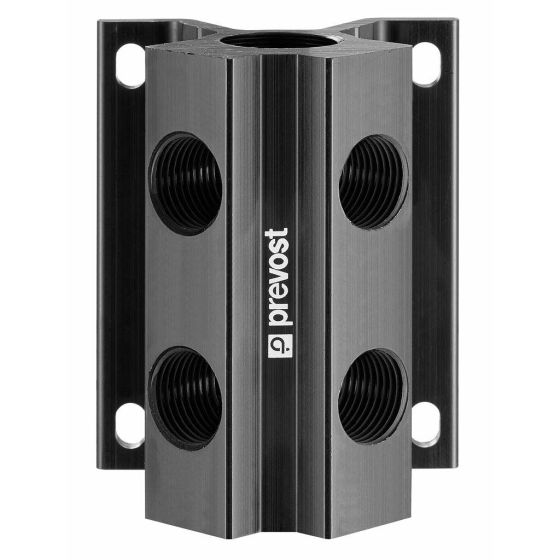

Manifold

• Multiple Outlets – Available with 4, 6, 8, or 10 outlets to meet various air distribution requirements.
• Durable Aluminium Construction – Ensures long-lasting performance with excellent corrosion resistance, designed for longeviety.
• Optimised Connections – Features a G 3/4" BSPP female inlet and G 1/2" BSPP female outlets for broad compatibility.
• High Flow Rate – Maintains consistent airflow across multiple tool connections, minimising pressure drops.
• Compact & Space-Saving Design – Ideal for streamlined air distribution systems.

Wall Bracket & Drain Port

• Quick Equipment Connection – Facilitates fast and secure attachment of tools and machinery.
• Integrated Drain Port – Efficiently manages moisture, preventing water accumulation and ensuring clean airflow.
• Compact & Versatile – Enhances air system efficiency while allowing for easy maintenance and reconfiguration.
• Dual Inlet And Outlet Options – Compatible with Female 1/2" BSPP and Female 3/4" BSPP, allowing connection to various pneumatic tools.
• High-Pressure Handling – Rated for up to 16 bar, making it suitable for demanding industrial applications.

Prevost Manifold & Wall Bracket

• Material: Aluminium
• Inlet: Female 1/2", 3/4"
• Outlets: Female 1/2", 3/4" (4, 6, 8, or 10 outlets for manifold)
• Drill Hole Diameter: 6.5mm
• Pressure Rating: 2 to 12 bar or manifold, up to 16 BAR for wall bracket
• Temperature Range: -20°C to +80°C
• Applications: Suitable for air, inert gases, and vacuum applications
• Additional Feature: Integrated drain port for moisture management

• Determine Placement – Select an optimal mounting position on the compressed air network, ensuring accessibility for equipment connections.
• Drill Mounting Holes – Use a 6.5mm drill bit to prepare the surface for secure bracket installation.
• Attach the Bracket or Manifold – Securely fasten the component to the wall or framework using sturdy mounting bolts.
• Connect the Air Supply – Attach the appropriate BSPP inlet fitting and ensure tight, leak-free connections.
• Secure Outlet Connections – Attach pneumatic tools, hoses, or accessories to the G 1/2" BSPP outlets.
• Check for Leaks – Pressurise the system and inspect connections for leak-proof performance.
• Test the Drain Function – Ensure proper moisture drainage from the built-in port to maintain air quality.

For optimal system performance, it is recommended to:

• Position manifolds at a height of approximately 1.2m from the floor for easy tool access.
• Install at least one shut-off valve near the manifold or bracket to control airflow during maintenance.
• Ensure proper drainage by slightly angling the pipe toward the drain port to prevent water accumulation.
