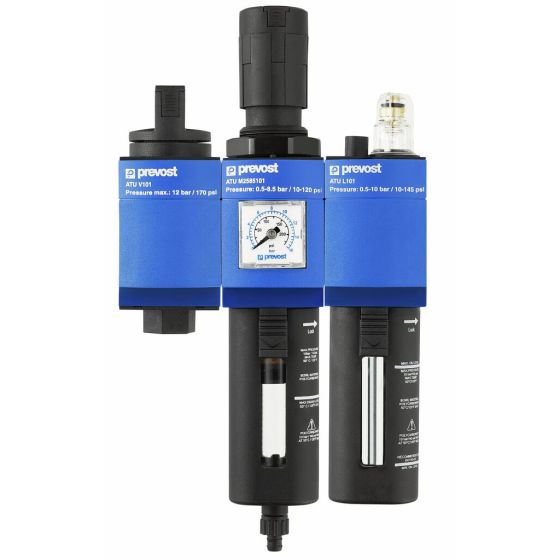

Prevost Air Filtration & Treatment
The Prevost Filtration range offers professional-grade compressed air treatment solutions, ensuring clean and efficient air distribution throughout pneumatic systems. Designed to optimise air flow and extend the service life of equipment, these filtration units help maintain consistent performance and reliability in industrial applications. Compliant with stringent industrial regulations, including the Pressure Equipment Directive 2014/68/EU and ATEX classifications, Prevost Filtration guarantees high standards of air purity and safety.
Applications
Prevost Filtration products are designed for a wide range of industrial applications, ensuring clean and efficient air supply for various pneumatic processes, including:
- Air tool supply: Providing high-quality air for pneumatic tools.
- Pneumatic automation: Enhancing efficiency in automated industrial operations.
- Blowing and inflation: Ensuring precise and controlled air distribution.
- General compressed air treatment: Removing contaminants to protect equipment and improve overall system performance.
Key Features And Benefits
- Certified Filtration: Complies with ISO 8573-1 air purity standards, effectively removing solid particles, water, and oil contaminants.
- Efficient Air Cleaning: Mechanical separation technology eliminates dust, shavings, and liquid impurities from compressed air systems.
- Regulation & Optimisation: Integrated regulators maintain constant pressure, protecting sensitive pneumatic components and optimising energy use.
- Manual Drain: Equipped with a barb-style outlet to facilitate condensate removal.
- Bayonet Locking System: Quick and secure filter replacement mechanism.
- Integrated Pressure Gauge: Ensures precise pressure monitoring without additional installations.
Technical Specification
- Operating Pressure Range: 0.8 - 12 bar
- Temperature Range: +5°C to 50°C
- Material Composition:
Body - Aluminium
Tank - Polycarbonate
Protections - Polyamide
- Thread Sizes Available: G1/8, G1/4, G3/8, G1/2 (conforming to NF EN ISO 228-1 standards)
- Filtration Levels: 1-5 µm or 25 µm
- Flow Rate (at 6.3 bar & Δp = 0.3 bar): 700 l/min - 3300 l/min depending on model.
Installation Overview
- Mounting the Filtration Unit: Ensure secure attachment to the air supply line using the appropriate thread size.
- Connecting the Air Supply: Use standardised connections (G1/8 - G1/2) to integrate with existing pneumatic systems.
- Setting Pressure Regulation: Adjust the integrated regulator to maintain a steady and optimal outlet pressure.
- Drainage Management: Connect a hose to the manual drain outlet for proper condensate removal.
- Filter Replacement: Use the bayonet-type locking mechanism for quick cartridge changes without system downtime.
- System Inspection: Regularly monitor the pressure gauge and clog indicator to maintain efficiency and performance.
