Key Features / Tech Specs:
- Manufacturer: Masterflex
- Material: PVC with yarn reinforcement
- Lightweight
- Supplied in 10 and 15 metre coils
- Abrasion resistance
- Acid and alkali chemical resistance
- Working temperature: -20°C to 70°C (intermittent to 85°C)
| Product Code | Interior Diameter (mm) | Working Pressure (bar) | Vacuum Flow of Water (mm) | Bend Radius (mm) | Weight (kg) | Length (m) |
| 374851 | 25 | 1.170 | 2000 | 25 | 2.9 | 15 |
| 374852 | 32 | 1.500 | 2000 | 32 | 3.9 | 15 |
| 374853 | 38 | 1.400 | 2000 | 38 | 4.8 | 15 |
| 374854 | 51 | 1.300 | 1500 | 51 | 6.5 | 15 |
| 374855 | 63 | 1.000 | 1400 | 63 | 7.7 | 15 |
| 374856 | 76 | 0.800 | 1000 | 76 | 6.6 | 10 |
| 374857 | 102 | 0.600 | 800 | 102 | 9.6 | 10 |
Useful Info:

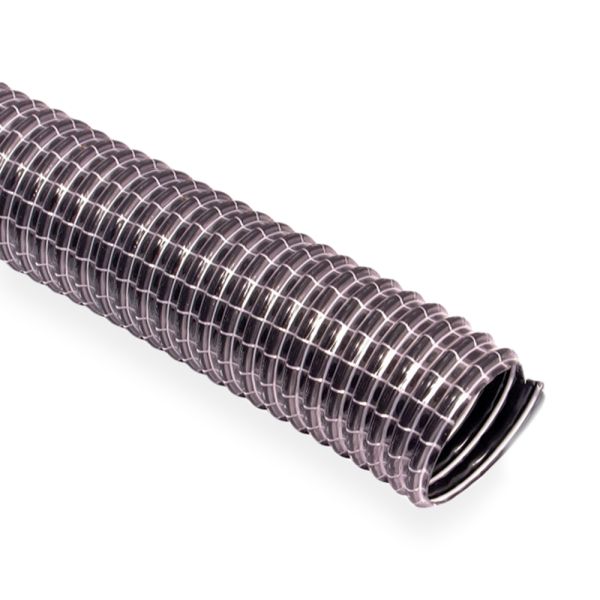

This is a highly flexible lightweight suction hose, ideal for use with domestic and industrial vacuum cleaners. It is manufactured from two layers of soft PVC with yarn and a plastic coated steel wire helix reinforcement.
The hose has a small bend radius and a mostly smooth inner lining for an excellent flow rate. With operating temperatures between -20°C and 70°C (85°C for a short time) this is an ideal hose for the extraction of dust and weld fumes but can be alternatively used as cable housing.
