Material & Finish: 1.5mm nylon-reinforced aluminium with a powder-coated finish in RAL 3020 Traffic Red and RAL 9003 Signal White
Barrier Type: Collapsible and expandable
Height Options:
IG4: 4ft (30kg)
IG6: 6ft (38kg)
Accessories Available:

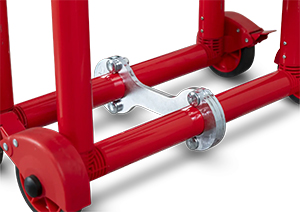

IGL1: Linking kit for pivoting and connecting multiple units

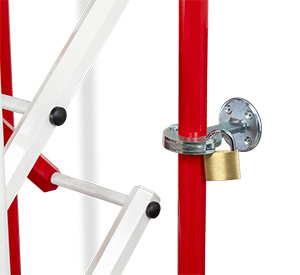

IGA1: Anchor kit for secure surface fixing
Use Case: People and plant segregation in construction, public access, and high-traffic zones
Storage: Collapsible for compact stowing
Description

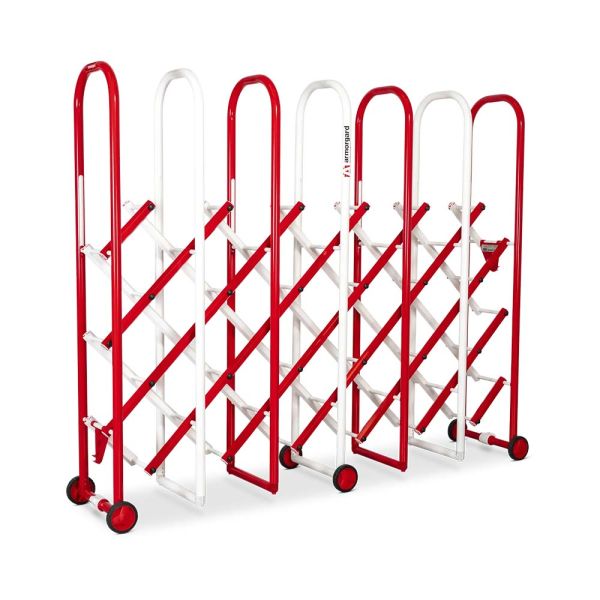

An advanced expandable safety barrier designed for quick deployment and effective crowd or site control. The InstaGate range is lightweight, yet incredibly strong, making it ideal for separating pedestrian traffic from plant operations in high-traffic areas. Available in two heights - 4ft (IG4) and 6ft (IG6) - these barriers offer flexible solutions for a wide range of indoor and outdoor safety applications.
Key Features & Benefits
Expandable Safety Solution: Quickly cordon off areas with a collapsible barrier system that’s easy to transport and deploy by a single person.
Two Height Options: Choose between IG4 (4ft) or IG6 (6ft) models to suit site-specific visibility and containment needs.
Ultra-Strong and Lightweight: Constructed from 1.5mm thick powder-coated aluminium and nylon, offering excellent strength without excess weight.
Seamless Linking and Anchoring: Compatible with optional anchor and linking kits to fix barriers securely to hoardings, floors, or link units at any angle.
All-Terrain Ready: Suitable for both indoor and outdoor use on a variety of surfaces, with non-detachable parts for maximum reliability.
Space-Efficient Storage: Folds down compactly for storage and transportation, making it ideal for reactive or mobile site teams.
IG4
IG6
Suitable For
Site
Site
Weight (Kg)
30
38
Folded Dimensions (W x D x H) mm
405 x 520 x 1335
410 x 520 x 1900
Extended Dimensions (W x D x H) mm
2160 x 520 x 1335
2330 x 520 x 1900
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
