High Temperature & Pressure

High Temperature & Pressure

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer: Norres
  • Lightweight
  • Double ply
  • Smooth bore
  • Supplied in 4-metre lengths
  • Working pressure: Up to 2.6 bar
  • Working temperature: -70°C to 260°C
  • Intermittent to 280°C
  • Conforms to RoHS guideline

Product Code Interior Diameter (mm) Exterior Diameter (mm) Working Pressure (bar) Vacuum Pressure (bar) Weight (kg) Length (m)
374741 51 55 2.600 0.520 1.4 4
374742 63 67 2.400 0.460 2 4
374743 76 80 2.100 0.430 2.3 4
374744 102 106 1.900 0.350 3.1 4
374745 127 132 1.400 0.230 3.7 4
374746 152 157 1.200 0.170 4.8 4

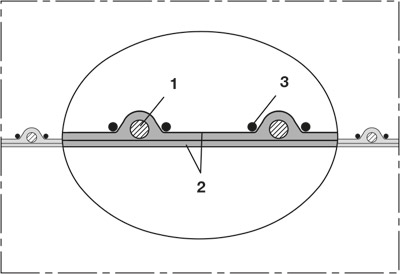

Useful Info:

  1. Spring steel
  2. Silicone coated glass fabric
  3. Cord reinforcement
sil-diag

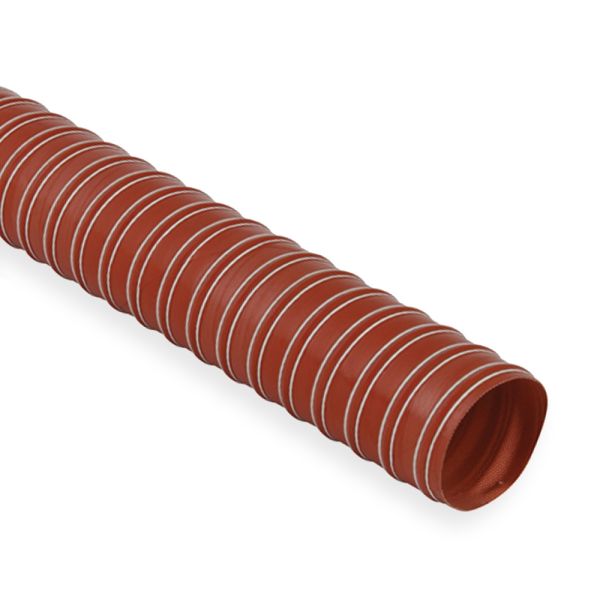

This double ply silicone-coated glass fabric is both highly flexible and heat resistant allowing for extreme working temperatures between -70°C and 260°C (intermittent to 280°C) and pressures of up to 2.6 bar. This hose is ideal for the suction and delivery of hot and cold air and is commonly used for the extraction of exhaust gases, engine warming and aircraft construction.

This highly flexible lightweight hose is both kink proof and leak proof and boasts a very low bend radius. The wall is reinforced with a fabric material as well as cord and spring steel wire.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Norres High Temp & Pressure Silicone Ducting 4m x 51mm
Code
374741
Product Name
Norres High Temp & Pressure Silicone Ducting 4m x 51mm
List Price
£174.95
You Pay
£157.46
You Save
10%
Qty
Norres High Temp & Pressure Silicone Ducting 4m x 63mm
Code
374742
Product Name
Norres High Temp & Pressure Silicone Ducting 4m x 63mm
List Price
£204.35
You Pay
£183.92
You Save
10%
Qty
Norres High Temp & Pressure Silicone Ducting 4m x 76mm
Code
374743
Product Name
Norres High Temp & Pressure Silicone Ducting 4m x 76mm
List Price
£229.10
You Pay
£206.19
You Save
10%
Qty
Norres High Temp & Pressure Silicone Ducting 4m x 102mm
Code
374744
Product Name
Norres High Temp & Pressure Silicone Ducting 4m x 102mm
List Price
£292.75
You Pay
£263.48
You Save
10%
Qty
Norres High Temp & Pressure Silicone Ducting 4m x 127mm
Code
374745
Product Name
Norres High Temp & Pressure Silicone Ducting 4m x 127mm
List Price
£352.40
You Pay
£317.16
You Save
10%
Qty
Norres High Temp & Pressure Silicone Ducting 4m x 152mm
Code
374746
Product Name
Norres High Temp & Pressure Silicone Ducting 4m x 152mm
List Price
£402.35
You Pay
£362.12
You Save
10%
Qty
6 products
