Anti-Static

Anti-Static

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer: Norres
  • Medium/Heavyweight
  • Anti-static
  • Supplied in compressed 10 metre lengths
  • Working temperature: -40°C to 90°C
  • Intermittent to 125°C
  • Smooth bore, optimised flow
  • Abrasion, chemical and microbe resistant
  • Flame retardant according to UL94-V2

Product Code Interior Diameter (mm) Exterior Diameter (mm) Working Pressure (bar) Vacuum Pressure (bar) Weight (kg) Length (m)
374408 50 60 2.450 0.930 6.6 10
374409 65 75 1.910 0.750 8.4 10
374410 75 86 1.660 0.615 10.5 10
374411 100 111 1.250 0.390 14.9 10
374412 125 136 1.010 0.295 18.4 10
374413 150 161 0.840 0.200 24.1 10
374414 160 171 0.785 0.185 25.6 10
374416 200 213 0.630 0.135 31.2 10
374418 250 263 0.510 0.085 38.8 10
374419 300 313 0.420 0.070 51.6 10



Useful Info:

  1. Spring steel
  2. Pre-PUR
  3. Wall thickness: 1.5mm
airduc-diag

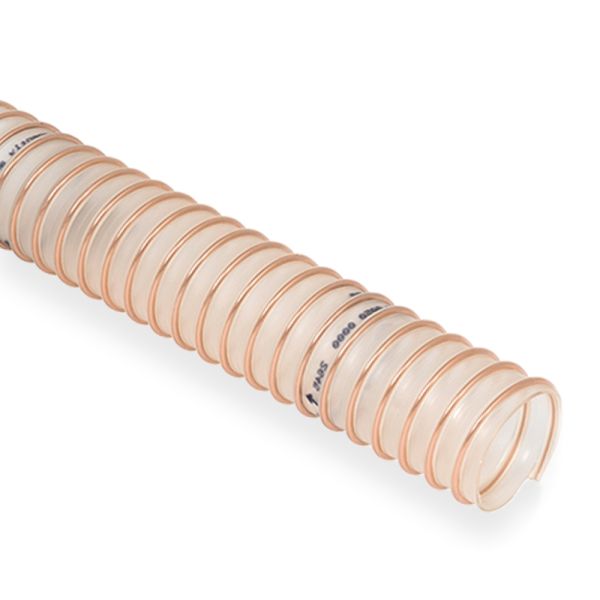

This industrial grade anti-static ducting is supplied in 10-metre lengths, compressed to save in cost and space. It has a working temperature of -40°C to 90°C (intermittent to 125°C) along with excellent UV and chemical resistance.

Manufactured from high-quality ester-polyurethane with a wire helix reinforcement made of spring steel, this hose is ideal for the suction and transportation of a range of solids and gases. These include abrasive materials such as dust, chippings, granules or fibres while gas extraction can include welding fumes and chemical vapours.

The heavyweight wall offers strength and excellent abrasion protection and is permanently anti-static (<10⁹Ω). This hose is suitable for use with industrial vacuum cleaners and industrial machines such as blowers, compressors and granulate conveying systems.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Norres Industrial Anti-Static Ducting 10m x 50mm
Code
374408
Product Name
Norres Industrial Anti-Static Ducting 10m x 50mm
List Price
£412.75
You Pay
£371.48
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 65mm
Code
374409
Product Name
Norres Industrial Anti-Static Ducting 10m x 65mm
List Price
£502.75
You Pay
£452.48
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 75mm
Code
374410
Product Name
Norres Industrial Anti-Static Ducting 10m x 75mm
List Price
£557.80
You Pay
£502.02
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 100mm
Code
374411
Product Name
Norres Industrial Anti-Static Ducting 10m x 100mm
List Price
£874.20
You Pay
£786.78
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 125mm
Code
374412
Product Name
Norres Industrial Anti-Static Ducting 10m x 125mm
List Price
£1,100.60
You Pay
£990.54
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 150mm
Code
374413
Product Name
Norres Industrial Anti-Static Ducting 10m x 150mm
List Price
£1,327.00
You Pay
£1,194.30
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 160mm
Code
374414
Product Name
Norres Industrial Anti-Static Ducting 10m x 160mm
List Price
£1,431.85
You Pay
£1,288.67
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 200mm
Code
374416
Product Name
Norres Industrial Anti-Static Ducting 10m x 200mm
List Price
£1,794.15
You Pay
£1,614.74
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 250mm
Code
374418
Product Name
Norres Industrial Anti-Static Ducting 10m x 250mm
List Price
£2,551.40
You Pay
£2,296.26
You Save
10%
Qty
Norres Industrial Anti-Static Ducting 10m x 300mm
Code
374419
Product Name
Norres Industrial Anti-Static Ducting 10m x 300mm
List Price
£2,980.65
You Pay
£2,682.59
You Save
10%
Qty
