Food Grade

Food Grade

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer: Norres
  • Medium weight
  • Supplied in compressed 10 metre lengths
  • Working temperature: -40°C to 90°C
  • Intermittent to 125°C
  • Smooth bore, optimised flow
  • Abrasion, chemical, microbe and hydrolysis resistance
  • Complies with FDA 21 CFR 177.2600 & 178.2010
  • Conforms to RoHS guidelines

Product Code Interior Diameter (mm) Exterior Diameter (mm) Working Pressure (bar) Vacuum Pressure (bar) Weight (kg) Length (m)
374388 38 45 1.780 0.525 3.1 10
374389 50 57 1.350 0.435 4 10
374390 65 70 1.020 0.295 5.2 10
374391 75 82 0.910 0.220 5.9 10
374392 100 107 0.690 0.115 8 10
374393 125 132 0.550 0.080 9.8 10
374394 150 157 0.455 0.075 14 10
374395 160 167 0.415 0.065 15 10
374396 175 182 0.355 0.050 16.3 10
374397 200 207 0.315 0.050 18.6 10
374398 225 232 0.265 0.035 20.8 10
374399 250 257 0.240 0.020 23.1 10
374400 300 307 0.200 0.020 27.7 10



Useful Info:

  1. Spring steel
  2. Pre-PUR
  3. Wall thickness: 0.7mm
airduc-diag

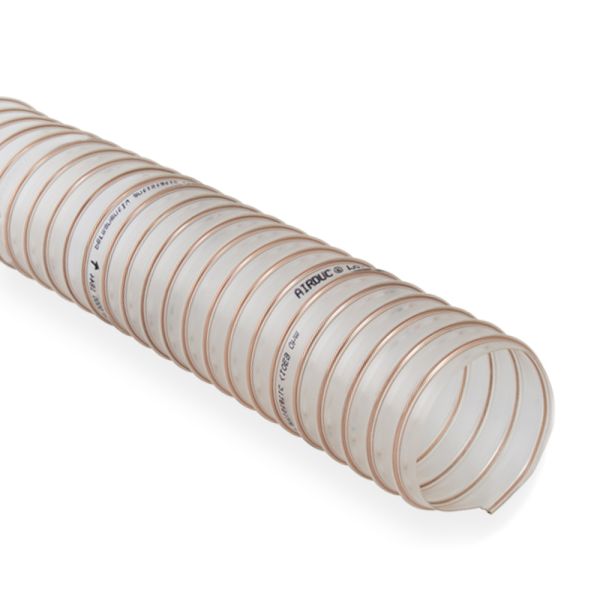

This industrial food grade ducting is supplied in 10-metre lengths, compressed to save in cost and space. It has a working temperature of -40°C to 90°C (intermittent to 125°C) along with excellent abrasion and chemical resistance.

Manufactured from high-quality premium ether polyurethane with a wire helix reinforcement made of spring steel, this hose is ideal for the suction and transportation of a range of solids and gases. These include abrasive materials such as dust, powder, granules or fibres while gas extraction can include welding fumes and chemical vapours.

The wall is lightweight yet strong and is permanently capable of electrostatic discharge due to the non-migrating anti-static polyurethane (<10⁹Ω). This hose is strong in structure, resisting to tear as well as UV rays and a variety of chemicals including oil and petrol.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Norres Industrial Food Grade Ducting 10m x 38mm
Code
374388
Product Name
Norres Industrial Food Grade Ducting 10m x 38mm
List Price
£200.35
You Pay
£180.32
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 50mm
Code
374389
Product Name
Norres Industrial Food Grade Ducting 10m x 50mm
List Price
£214.30
You Pay
£192.87
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 65mm
Code
374390
Product Name
Norres Industrial Food Grade Ducting 10m x 65mm
List Price
£244.35
You Pay
£219.92
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 75mm
Code
374391
Product Name
Norres Industrial Food Grade Ducting 10m x 75mm
List Price
£271.05
You Pay
£243.95
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 100mm
Code
374392
Product Name
Norres Industrial Food Grade Ducting 10m x 100mm
List Price
£348.40
You Pay
£313.56
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 125mm
Code
374393
Product Name
Norres Industrial Food Grade Ducting 10m x 125mm
List Price
£436.90
You Pay
£393.21
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 150mm
Code
374394
Product Name
Norres Industrial Food Grade Ducting 10m x 150mm
List Price
£510.35
You Pay
£459.32
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 160mm
Code
374395
Product Name
Norres Industrial Food Grade Ducting 10m x 160mm
List Price
£550.45
You Pay
£495.41
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 175mm
Code
374396
Product Name
Norres Industrial Food Grade Ducting 10m x 175mm
List Price
£605.50
You Pay
£544.95
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 200mm
Code
374397
Product Name
Norres Industrial Food Grade Ducting 10m x 200mm
List Price
£695.10
You Pay
£625.59
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 225mm
Code
374398
Product Name
Norres Industrial Food Grade Ducting 10m x 225mm
List Price
£784.15
You Pay
£705.74
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 250mm
Code
374399
Product Name
Norres Industrial Food Grade Ducting 10m x 250mm
List Price
£894.35
You Pay
£804.92
You Save
10%
Qty
Norres Industrial Food Grade Ducting 10m x 300mm
Code
374400
Product Name
Norres Industrial Food Grade Ducting 10m x 300mm
List Price
£1,045.15
You Pay
£940.64
You Save
10%
Qty
13 products
