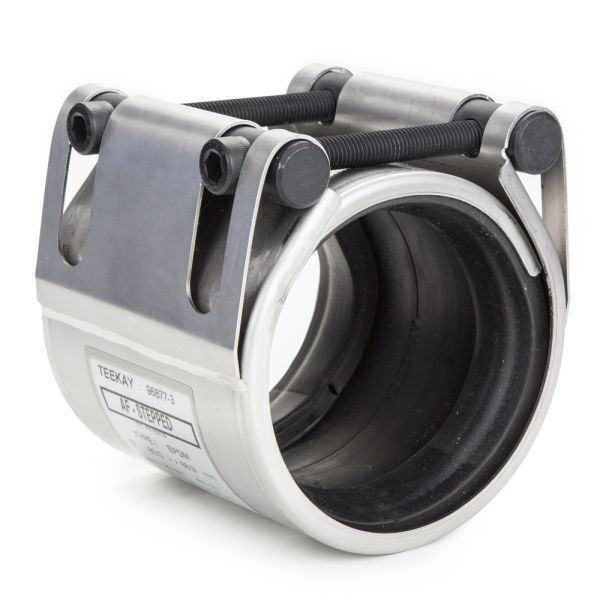

Axiflex Reducing Coupling Plastic / Metal - Above Ground

Useful Information

Axiflex stepped couplings, from Teekay, are used to connect plain-end pipe lengths together that have different outer diameters as well as different materials.

These couplings are suitable for use with pipe materials including carbon steel, stainless steel, copper, cast and ductile iron, MDPE, HDPE, PVC, uPVC and ABS.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners Alloy Steel, Coated
Gasket EPDM/NBR/H-NBR/FKM/VMQ
Pressure Rating up to 16 bar
Type 1 - Above ground
Sizes 108mm x 114.3mm - 160mm x 168.3mm



teekay-axiflex-step-coupling

Product Code D1 (mm) W1 (mm) PN D2 (mm) D3 (mm) No. of Screws Screw Size Weight (kg)
402953 108 x 114.3 110 16 123 x 129.3 158 2 M10 2.00
402954 110 x 112 110 16 125 x 127 158 2 M10 2.00
402955 110 x 114.3 110 16 125 x 129.3 158 2 M10 2.00
402956 150 x 160 110 16 165 x 175 198 2 M10 2.40
402957 160 x 168.3 110 16 175 x 183.3 212 2 M10 2.60



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402953TK Axiflex Coupling Step T1 16 Bar 114.3mm x 108mm £164.02 40% £98.41
402954TK Axiflex Coupling Step T1 16 Bar 112mm x 110mm £164.02 40% £98.41
402955TK Axiflex Coupling Step T1 16 Bar 114.3mm x 110mm £164.02 40% £98.41
402956TK Axiflex Coupling Step T1 16 Bar 160mm x 150mm £196.82 40% £118.09
402957TK Axiflex Coupling Step T1 16 Bar 168.3mm x 160mm £196.82 40% £118.09
