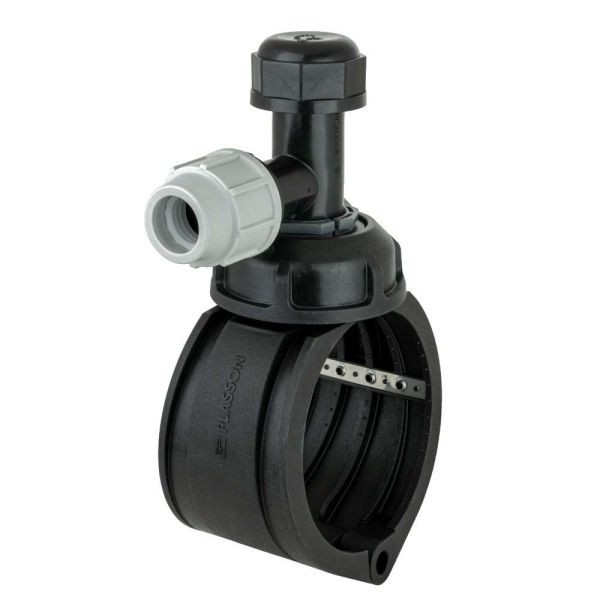

Plasson Mechanical Saddle Clamp

Loading...
Useful Information

Technical Specification

  • Pressure Rating: PN16
  • Compatible Pipe Materials: MDPE & PVC
  • Installation Method: Manual assembly and wrench-tightened finish
  • Outlet Adjustment: Rotatable, secured by nut
  • Cutter Operation: 12mm hex drive

Description

Engineered for ease of use in trench applications, this robust clamp offers secure tapping of both live and unpressurised PE and PVC mains without the need for bolts. With its innovative snap-fit design, installation is fast, tool-efficient, and avoids loose parts that could be lost during fieldwork.

Key Features & Benefits

  • Bolt-free, snap-together design for quick and clean installation
  • Suitable for MDPE and PVC pipe systems
  • The integral cutter enables live or dry tapping using a 12mm hex drive
  • Rotatable outlet secured with a grey locking nut
  • Compatible with the Plasson mechanical wrench for final tightening
SKU Supplier Code Size (mm)
409503 PL163100063025 63 x 25
409504 PL163100063032 63 x 32
409505 PL163100090025 90 x 25
409506 PL163100090032 90 x 32
409507 PL163100110025 110 x 25
409508 PL163100110032 110 x 32
409509 PL163100125025 125 x 25
409510 PL163100125032 125 x 32
409511 PL163100160025 160 x 25
409512 PL163100160032 160 x 32
409513 PL163100180025 180 x 25
409514 PL163100180032 180 x 32

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
Code Product Name List Price You Save You Pay Quantity
409503 PL Mechanical Saddle 63mm x 25mm £103.84 40%
You Pay:  £62.30
409504 PL Mechanical Saddle 63mm x 32mm £103.84 40%
You Pay:  £62.30
409505 PL Mechanical Saddle 90mm x 25mm £118.25 40%
You Pay:  £70.95
409506 PL Mechanical Saddle 90mm x 32mm £118.25 40%
You Pay:  £70.95
409507 PL Mechanical Saddle 110mm x 25mm £133.10 40%
You Pay:  £79.86
409508 PL Mechanical Saddle 110mm x 32mm £133.10 40%
You Pay:  £79.86
409509 PL Mechanical Saddle 125mm x 25mm £148.50 40%
You Pay:  £89.10
409510 PL Mechanical Saddle 125mm x 32mm £148.50 40%
You Pay:  £89.10
409511 PL Mechanical Saddle 160mm x 25mm £165.00 40%
You Pay:  £99.00
409512 PL Mechanical Saddle 160mm x 32mm £165.00 40%
You Pay:  £99.00
409513 PL Mechanical Saddle 180mm x 25mm £198.00 40%
You Pay:  £118.80
409514 PL Mechanical Saddle 180mm x 32mm £198.00 40%
You Pay:  £118.80
