Medium Temperature

Medium Temperature

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer: Norres
  • Supplied in compressed 10-metre lengths
  • Working temperature: -40°C to 125°C
  • Intermittent to 150°C
  • Smooth bore, optimised flow
  • Abrasion, chemical, UV and ozone resistance
  • Conforms to RoHS guidelines

Product Code Interior Diameter (mm) Exterior Diameter (mm) Working Pressure (bar) Vacuum Pressure (bar) Weight (kg) Length (m)
374401 50 58 1.440 0.365 4.1 10
374402 65 73 1.110 0.255 5.3 10
374403 75 84 0.965 0.195 6.4 10
374404 100 109 0.725 0120 9.7 10
374405 125 134 0.590 0.085 12 10
374406 150 159 0.485 0.075 15.2 10
374407 200 209 0.370 0.055 20 10



Useful Info:

  1. Spring steel
  2. High temp Pre-PUR
  3. Wall thickness: 1.0mm
airduc-diag

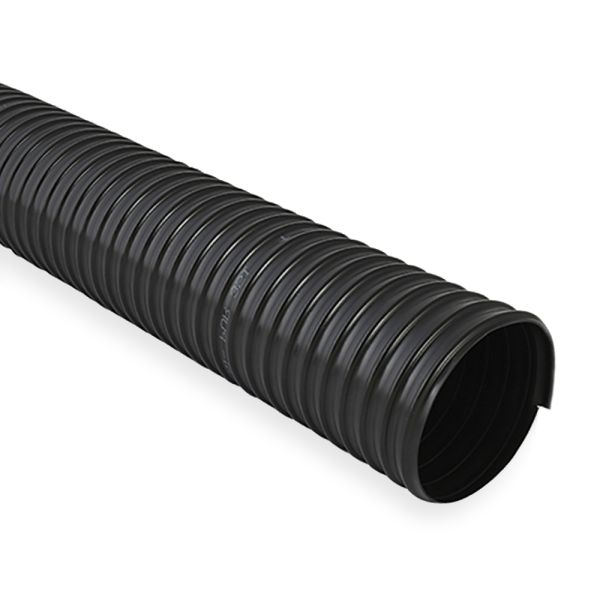

This industrial grade ducting is supplied in 10-metre lengths, compressed to save in cost and space. This heat resistant hose allows for working temperatures between -40°C and 125°C (intermittent to 150°C).

Manufactured from a special polyurethane with a wire helix reinforcement made of spring steel, this hose is ideal for the suction and transportation of a range of abrasive solids and/or fumes, particularly those of fairly high heat (150° or below). Suitable applications include industrial vacuum cleaners, paper and textile suction and machines such as printers blowers and compressors.

The wall is gas and liquid tight and medium in weight. It has high tensile strength and tear resistance while offering excellent protection against abrasions, chemicals and UV rays.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Norres Industrial Medium Temperature Ducting 10m x 50mm
Code
374401
Product Name
Norres Industrial Medium Temperature Ducting 10m x 50mm
List Price
£400.05
You Pay
£360.05
You Save
10%
Qty
Norres Industrial Medium Temperature Ducting 10m x 65mm
Code
374402
Product Name
Norres Industrial Medium Temperature Ducting 10m x 65mm
List Price
£455.70
You Pay
£410.13
You Save
10%
Qty
Norres Industrial Medium Temperature Ducting 10m x 75mm
Code
374403
Product Name
Norres Industrial Medium Temperature Ducting 10m x 75mm
List Price
£506.10
You Pay
£455.49
You Save
10%
Qty
Norres Industrial Medium Temperature Ducting 10m x 100mm
Code
374404
Product Name
Norres Industrial Medium Temperature Ducting 10m x 100mm
List Price
£653.10
You Pay
£587.79
You Save
10%
Qty
Norres Industrial Medium Temperature Ducting 10m x 125mm
Code
374405
Product Name
Norres Industrial Medium Temperature Ducting 10m x 125mm
List Price
£815.35
You Pay
£733.82
You Save
10%
Qty
Norres Industrial Medium Temperature Ducting 10m x 150mm
Code
374406
Product Name
Norres Industrial Medium Temperature Ducting 10m x 150mm
List Price
£956.05
You Pay
£860.45
You Save
10%
Qty
Norres Industrial Medium Temperature Ducting 10m x 200mm
Code
374407
Product Name
Norres Industrial Medium Temperature Ducting 10m x 200mm
List Price
£1,300.45
You Pay
£1,170.41
You Save
10%
Qty
7 products
