Prevost Aluminium Pipe

Prevost Aluminium Pipe

More Info

Key Features / Tech Specs:

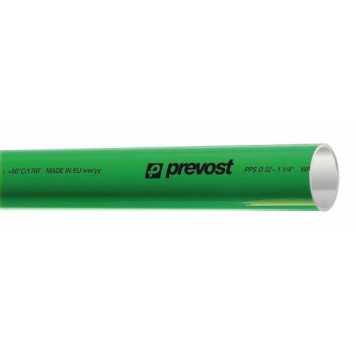

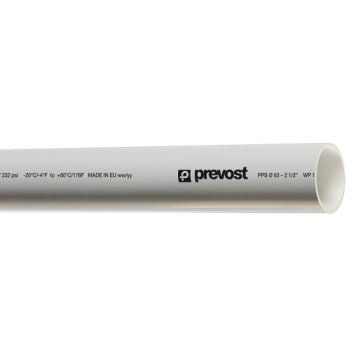

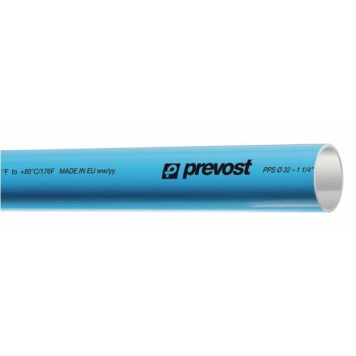

PPS line: 100% aluminium pipe
Compact, lightweight and durable
Maximum pressure of 16 bar
A leak free system with optimised flow rates
A clean, high quality air supply

Not suitable for use with water.

An Open System:

Pressure: 8 bar | Max. Pressure drop: 5% (0.4 bar) | Max. Speed 10m/s

Compressor					Length of main line
Power		Flow Rate			50m	100m	150m	300m	500m	750m	1000m	1300m	1600m
kW	HP	Nm3/h	NI/min	Scfm	164ft	328ft	492ft	984ft	1640ft	2460ft	3280ft	4265ft	5249ft
2.2	3	22	367	13	16	16	20	20	25	25	25	25	32
3	4	30	500	18	16	20	20	25	25	25	32	32	32
4	5.5	40	667	24	20	20	25	25	32	32	32	32	32
5.5	7.5	50	834	29	20	25	25	25	32	32	32	40	40
7.5	10	70	1167	41	20	25	25	32	32	40	40	40	40
11	15	100	1667	59	25	32	32	32	40	40	40	50	50
15	20	150	2500	88	32	32	32	40	50	50	50	50	63
18	25	180	3000	106	32	32	40	40	50	50	50	63	63
22	30	220	3667	129	40	40	40	50	50	50	63	63	63
26	35	260	4334	153	40	40	40	50	50	63	63	63	63
30	40	300	5000	176	40	40	50	50	63	63	63	63	80
37	50	370	6167	218	50	50	50	50	63	63	63	80	80
45	60	450	7500	265	50	50	50	63	63	80	80	80	80
55	75	550	9167	324	63	63	63	63	80	80	80	80	100
75	100	750	12500	441	63	63	63	80	80	80	100	100	100
90	120	900	15000	529	80	80	80	80	80	100	100	100	100
110	150	1100	18334	647	80	80	80	80	100	100	100	100
130	175	1300	21667	765	80	80	80	80	100	100	100
160	215	1600	26667	941	100	100	100	100	100
200	270	2000	33334	1176	100	100	100	100

A Closed System:

Pressure: 8 bar | Max. Pressure drop: 5% (0.4 bar) | Max. Speed 10m/s

Compressor					Length of main line
Power		Flow Rate			50m	100m	150m	300m	500m	750m	1000m	1300m	1600m
kW	HP	Nm3/h	NI/min	Scfm	164ft	328ft	492ft	984ft	1640ft	2460ft	3280ft	4265ft	5249ft
2.2	3	22	367	13	16	16	16	16	20	20	20	20	25
3	4	30	500	18	16	16	16	20	20	20	25	25	25
4	5.5	40	667	24	16	16	20	20	25	25	25	25	32
5.5	7.5	50	834	29	16	20	20	20	25	25	25	32	32
7.5	10	70	1167	41	20	20	20	25	25	32	32	32	32
11	15	100	1667	59	20	25	25	25	32	32	32	40	40
15	20	150	2500	88	25	25	32	32	32	40	40	40	40
18	25	180	3000	106	25	25	32	32	40	40	40	50	50
22	30	220	3667	129	25	32	32	40	40	40	50	50	50
26	35	260	4334	153	32	32	32	40	40	50	50	50	50
30	40	300	5000	176	32	32	40	40	50	50	50	50	63
37	50	370	6167	218	32	32	40	40	50	50	50	63	63
45	60	450	7500	265	40	40	40	50	50	63	63	63	63
55	75	550	9167	324	40	40	50	50	63	63	63	63	80
75	100	750	12500	441	50	50	50	63	63	63	80	80	80
90	120	900	15000	529	50	50	50	63	63	80	80	80	80
110	150	1100	18334	647	63	63	63	63	80	80	80	80	100
130	175	1300	21667	765	63	63	63	63	80	80	80	100	100
160	215	1600	26667	941	63	63	63	80	80	80	100	100	100
200	270	2000	33334	1176	80	80	80	80	80	100	100	100	100
250	340	2500	41667	1471	80	80	80	80	100	100	100
300	405	3000	50000	1765	100	100	100	100	100	100
350	475	3500	58334	2059	100	100	100	100	100
400	540	4000	66667	2353	100	100	100	100

Useful Info:

Pipestock are proud to supply this new cutting-edge compressed air distribution system. The aluminium Prevost Piping System was designed to be compact, light weight and durable enough to withstand the harshest operating conditions.

Please note fittings and pipe are not interchangeable with other product ranges.

Installation Instructions:

Ensure all cuts made to the pipe are straight and the inside and outside of each edge is de-burred

The pipe must be fully inserted into the fitting – to do this, simply mark the point using the tightening key, loosen the locking nut and with one motion twist and push the pipe into the fitting – it may help if you use a lubricated spray (non aggressive)
Use PTFE tape on all male threads unless a seal is supplied
Make sure the pipe is straight and level, clamping every 3 metres and where it may be necessary to ensure a strong bind to the wall or ceiling of the building
Tighten all fittings by hand and once the system is in place, tighten using the PPS1 CLE key and torque wrench to the following points, starting at the lower setting – for example 25mm fittings – 21-35Nm
Once all fittings are tightened, set the compressor at 2 BAR and run for 5 minutes, then check each fitting for leaks, adjust if needed, and repeat the test at 8 BAR. Again check all and if the system is leak free, your customer is free to use the system

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

Sizing a Compressed Air System

Open System | Pressure: 8 bar | Max. pressure drop 5% (0.4 bar) | Max. speed: 10 m/s

Compressor*					Main Line Length For Open System
Power		Loss			50m	100m	150m	300m	500m	750m	1000m	1300m	1600m
kW	CV	Nm3/h	Nl/min	Scfm	164ft	328ft	492ft	984ft	1640ft	2460ft	3280ft	4265ft	5249ft
2.2	3	22	367	13	16	16	20	20	25	25	25	25	32
3	4	30	500	18	16	20	20	25	25	25	32	32	32
4	5.5	40	667	24	20	20	25	25	32	32	32	32	32
5.5	7.5	50	834	29	20	25	25	25	32	32	32	40	40
7.5	10	70	1167	41	25	25	25	32	32	40	40	40	40
11	15	100	1667	59	25	32	32	32	40	40	40	50	50
15	20	150	2500	88	32	32	40	40	50	50	50	50	63
18	25	180	3000	106	32	32	40	40	50	50	50	63	63
22	30	220	3667	129	40	40	40	50	50	50	63	63	63
26	35	260	4334	153	40	40	40	50	50	63	63	63	63
30	40	350	5000	176	40	40	50	50	63	63	63	63	80
37	50	370	6167	218	50	50	50	63	63	63	80	80	80
45	60	450	7500	265	50	50	50	63	63	80	80	80	80
55	75	550	9167	324	63	63	63	63	80	80	80	80	100
75	100	750	12500	441	63	63	63	80	80	80	100	100	100
90	120	900	15000	529	80	80	80	80	80	100	100	100	100
110	150	1100	18334	647	80	80	80	80	100	100	100	100	160
130	175	1300	21667	765	80	80	80	80	100	100	100	160	160
160	215	1600	26667	941	100	100	100	100	100	160	160	160	160
200	270	2000	33334	1176	100	100	100	100	160	160	160	160	160
250	340	2500	41667	1471	160	160	160	160	160	160	160	160	160
300	405	3000	50000	1765	160	160	160	160	160	160	160	160	160
350	475	3500	58334	2059	160	160	160	160	160	160	160	160	160
400	540	4000	66667	2353	160	160	160	160	160	160	160	160
450	600	4500	75000	2647	160	160	160	160	160	160	160
500	700	5000	83334	2941	160	160	160	160	160	160

*Values may vary slightly from the compressor manufacturer’s data.

Closed System | Pressure: 8 bar | Max. pressure drop 5% (0.4 bar) | Max. speed: 10 m/s

Compressor*					Main Line Length For Closed System
Power		Loss			50m	100m	150m	300m	500m	750m	1000m	1300m	1600m	2000m
kW	CV	Nm3/h	Nl/min	Scfm	164ft	328ft	492ft	984ft	1640ft	2460ft	3280ft	4265ft	5249ft	6562ft
2.2	3	22	367	13	16	16	16	16	20	20	20	20	25	25
3	4	30	500	18	16	16	16	20	20	20	25	25	25	25
4	5.5	40	667	24	16	16	20	20	25	25	25	25	32	32
5.5	7.5	50	834	29	16	20	20	25	25	25	25	32	32	32
7.5	10	70	1167	41	20	20	20	25	25	32	32	32	32	32
11	15	100	1667	59	20	25	25	25	32	32	32	40	40	40
15	20	150	2500	88	25	25	32	32	40	40	40	40	50	50
18	25	180	3000	106	25	32	32	32	40	40	40	50	50	50
22	30	220	3667	129	25	32	32	40	40	40	50	50	50	50
26	35	260	4334	153	32	32	32	40	40	50	50	50	50	63
30	40	350	5000	176	32	32	40	40	50	50	50	50	63	63
37	50	370	6167	218	32	40	40	40	50	50	63	63	63	63
45	60	450	7500	265	40	40	40	50	50	63	63	63	63	63
55	75	550	9167	324	40	40	50	50	63	63	63	63	80	80
75	100	750	12500	441	50	50	50	63	63	63	80	80	80	80
90	120	900	15000	529	50	50	50	63	63	80	80	80	80	80
110	150	1100	18334	647	63	63	63	63	80	80	80	80	100	100
130	175	1300	21667	765	63	63	63	63	80	80	80	100	100	100
160	215	1600	26667	941	63	63	63	80	80	100	100	100	100	100
200	270	2000	33334	1176	80	80	80	80	100	100	100	100	160	160
250	340	2500	41667	1471	80	80	80	80	100	100	100	160	160	160
300	405	3000	50000	1765	100	100	100	100	100	100	160	160	160	160
350	475	3500	58334	2059	100	100	100	100	100	160	160	160	160	160
400	540	4000	66667	2353	100	100	100	100	160	160	160	160	160	160
450	600	4500	75000	2647	160	160	160	160	160	160	160	160	160	160
500	700	5000	83334	2941	160	160	160	160	160	160	160	160	160	160
600	810	6000	100000	3529	160	160	160	160	160	160	160	160	160	160
700	950	7000	116667	4118	160	160	160	160	160	160	160	160	160
800	1080	8000	133334	4706	160	160	160	160	160	160	160

*Values may vary slightly from the compressor manufacturer’s data.
