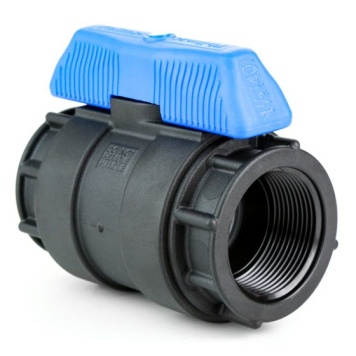

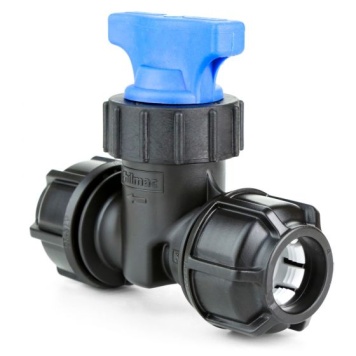

Philmac Stopcocks & Valves

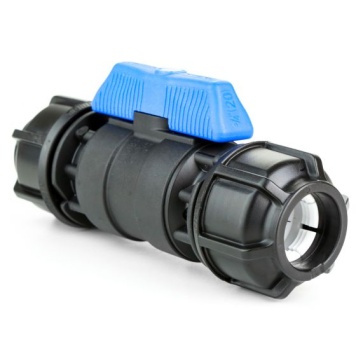

Philmac Stopcocks & Valves provide a robust, high-performance solution for controlling water flow in cold water systems. Designed with durability and ease of use in mind, these valves are manufactured from high-performance thermoplastics and feature polypropylene balls for smooth, reliable operation. Suitable for use in domestic, commercial, and agricultural applications, Philmac ball valves can be installed in any orientation, offering maximum flexibility for a wide range of system configurations. With a working pressure of up to 14 bar, they ensure dependable isolation and flow regulation.

Application

  • Potable Water Systems: Ideal for main water isolation in residential and commercial installations.
  • Agricultural & Irrigation Systems: Provides reliable flow control in field pipework, greenhouses, and livestock water supply lines.
  • General Utility and Service Installations: Used in valve chambers, meter boxes, and service connections for easy access and shut-off.
  • Temporary & Emergency Isolation: Quick and effective shut-off solution for maintenance or system modifications.

Technical Specification

  • Body Material: High-performance thermoplastic
  • Ball Material: Polypropylene
  • Max. Pressure: 14 bar at 20°C
  • Orientation: Can be installed in either direction and in any position
  • Connection Types: Available in compression, threaded, or universal transition configurations (varies by model)
  • Temperature Range: 0°C to 40°C (cold water use only)
  • Colour: Typically black with blue or grey control handles
  • Standards Compliance: Manufactured to industry standards for use in water service applications

Installation Overview

  • Preparation

Ensure pipe ends are clean and square.
Choose an appropriate valve configuration (compression, threaded, or transition).

  • Installation

For compression models, insert the pipe and tighten the nut by hand, then secure with a strap wrench.
For threaded models, apply PTFE tape to male threads and tighten gently.

  • Orientation & Positioning

Valves may be installed in any direction or orientation, including vertical or horizontal runs.

  • Testing & Operation

Once installed, turn the valve handle to ensure smooth open/close operation.
Pressurise the system and check all connections for leaks.
