Plastlock Coupling Plastic to Plastic - Above Ground

Useful Information

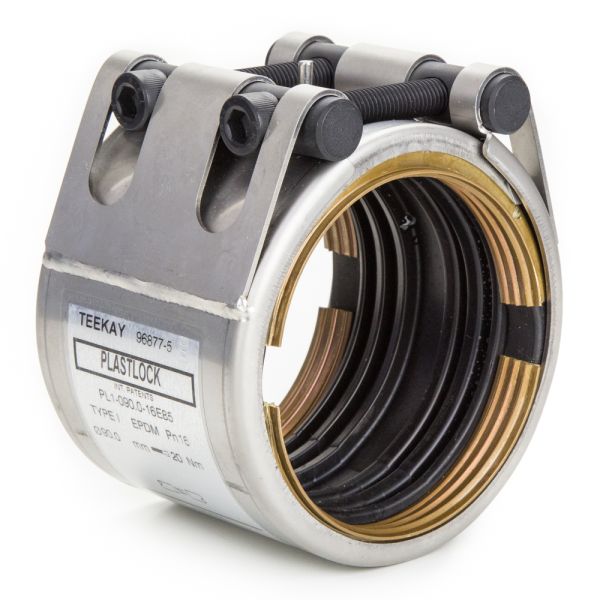

Plastlock couplings, from Teekay, are used to connect plastic pipe lengths together with speed and ease without the need for gluing or fusion technology.

They incorporate Teekay multiple seal gaskets with three anchoring rings staggered at different heights, which hold the two lengths of pipe together, locking them permanently in position.

These couplings are suitable for use with plastic pipe materials including PVCu, ABS, polyethylene, polypropylene, polybutylene, and PVC-C.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners Alloy Steel, PTFE coated
Gasket EPDM/NBR/HNBR/Silicone
Pressure Rating up to 16 bar
Type 1 - Above ground
Sizes 40mm - 315mm
Standards WIS-4-24-01 BS 8561:2013



teekay-plastlock-coupling

Product Code D1 (mm) W1 (mm) PN D2 (mm) D3 (mm) D4 (mm) Screw Size Weight (kg)
402869 40 85 16 57 69 132 2 x M8 0.42
402870 50 85 16 67 83 134 2 x M8 0.71
402871 63 88 16 80 96 145 2 x M8 0.90
402872 75 88 16 93 108 184 2 x M10 0.95
402873 90 88 16 107 123 193 2 x M10 1.05
402874 110 88 16 128 148 208 2 x M10 1.41
402875 125 89 16 144 161 219 2 x M10 1.75
402876 140 115 16 159 184 241 2 x M12 2.65
402877 160 116 16 180 206 258 2 x M12 3.15
402878 180 119 10 - - - - -
402879 200 120 10 226 252 321 2 x M16 6.70
402880 225 120 10 251 278 342 2 x M16 6.90
402881 250 120 10 276 302 364 2 x M16 7.30
402882 315 120 10 341 368 418 2 x M16 9.20



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402869TK Plastlock Coupling T1 16 Bar 40mm £144.85 40% £86.91
402870TK Plastlock Coupling T1 16 Bar 50mm £147.26 40% £88.36
402871TK Plastlock Coupling T1 16 Bar 63mm £179.48 40% £107.69
402872TK Plastlock Coupling T1 16 Bar 75mm £183.39 40% £110.03
402873TK Plastlock Coupling T1 16 Bar 90mm £191.51 40% £114.91
402874TK Plastlock Coupling T1 16 Bar 110mm £202.41 40% £121.45
402875TK Plastlock Coupling T1 16 Bar 125mm £221.93 40% £133.16
402876TK Plastlock Coupling T1 16 Bar 140mm £383.20 40% £229.92
402877TK Plastlock Coupling T1 16 Bar 160mm £427.21 40% £256.33
402878TK Plastlock Coupling T1 10 Bar 180mm £441.48 40% £264.89
402879TK Plastlock Coupling T1 10 Bar 200mm £721.40 40% £432.84
402880TK Plastlock Coupling T1 10 Bar 225mm £747.88 40% £448.73
402881TK Plastlock Coupling T1 10 Bar 250mm £769.45 40% £461.67
402882TK Plastlock Coupling T1 10 Bar 315mm £1,210.54 40% £726.32
