Axilock Coupling Plastic / Metal - Above Ground

Useful Information

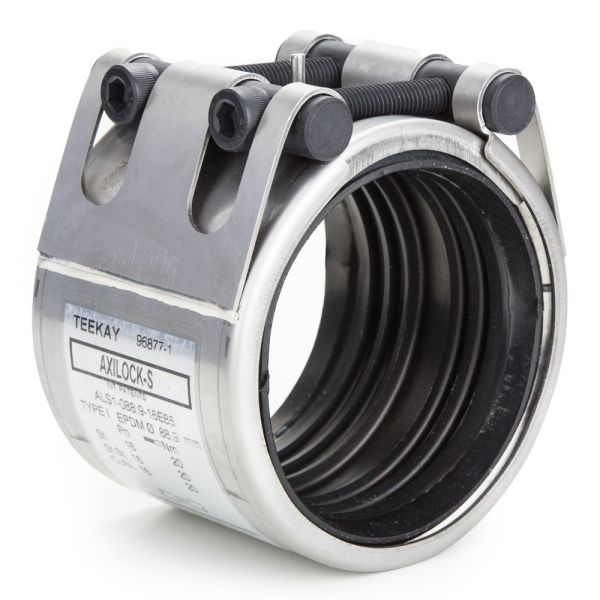

Axilock-S couplings, from Teekay, are used to connect plain-end pipe lengths together with speed and ease without the need for gluing or fusion technology. The 'S' in Axilock-S denotes that the couplings are single casing fittings. Double casing versions are also available.

They incorporate grip rings at either end of the fitting and a rubber lining throughout, locking the pipes in position ensuring corrosion resistance throughout the life of the coupling.

These couplings are suitable for use with pipe materials including carbon steel, stainless steel, copper, cast and ductile iron as well as most plastics.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners Alloy Steel, Coated
Gasket EPDM/NBR/H-NBR/FKM/VMQ
Pressure Rating up to 16 bar
Type 1 - Above ground
Sizes 54mm - 168.3mm
Standards DIN 86128 Form G (axial restrained)



teekay-axilock-s-coupling

Product Code D1 (mm) W1 (mm) PN D2 (mm) D3 (mm) D4 (mm) Screw Size Weight (kg)
402941 54 88 16 71 87 138 2 x M8 0.72
402942 60.3 88 16 78 93 143 2 x M8 0.90
402943 76.1 88 16 94 109 185 2 x M10 0.95
402944 88.9 88 16 107 123 193 2 x M10 1.05
402945 114.3 89 16 133 149 211 2 x M10 1.50
402946 168.3 115 13 189 214 265 2 x M12 3.40



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402941TK Axilock-S Coupling T1 16 Bar 54mm £129.14 40% £77.48
402942TK Axilock-S Coupling T1 16 Bar 60.3mm £131.79 40% £79.07
402943TK Axilock-S Coupling T1 16 Bar 76.1mm £134.92 40% £80.95
402944TK Axilock-S Coupling T1 16 Bar 88.9mm £140.90 40% £84.54
402945TK Axilock-S Coupling T1 16 Bar 114.3mm £151.55 40% £90.93
402946TK Axilock-S Coupling T1 13 Bar 168.3mm £322.38 40% £193.43
