Fernco Pipe Saddles: Efficient and Versatile Solutions for Lateral Connections

Fernco's Pipe Saddles provide innovative solutions for connecting lateral pipes to main drain pipelines. These saddles are ideal for both new and existing drainage systems, offering flexibility, ease of installation, and robust performance.

Saddle Variants

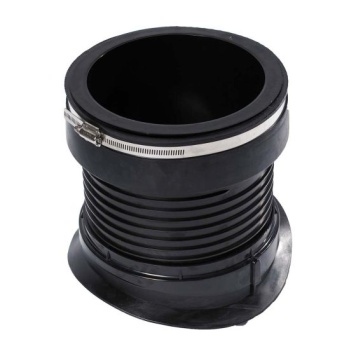

  • Unisaddle (FA150U, FA150B, FA200B)
    Designed for concrete and clay pipes, Unisaddles offer flexibility in connecting to various pipe sizes.
    Minimum wall thickness requirements ensure a secure fit, with lateral applications including all DN150 pipes when used with a Fernco Multibush.
    The Unisaddle range is WRc Approved, signifying adherence to high standards and quality.
    Material: EPDM, ABS plastic, and stainless steel, ensuring durability and reliability​​​​​​.

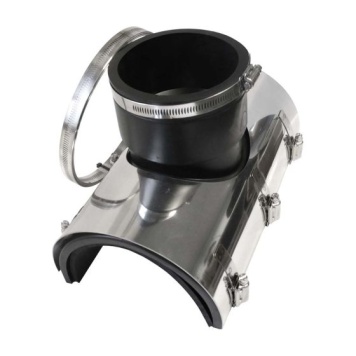

  • TA Saddle
    Suitable for 45° and 90° lateral connections, TA Saddles connect 110mm, 160mm, or 200mm lateral pipes into larger diameter sewer or surface water pipes.
    The TA Saddle can be installed onto PVC, Clay, or Concrete pipes, ensuring a strong and secure connection.
    Material: Features a robust stainless steel shroud and offers ease of installation without heavy lifting equipment​​​​​​.

  • PA Saddle and UA Saddle
    Designed specifically for plastic pipes, these saddles provide an airtight and watertight seal between a main pipe and a smaller lateral pipe.
    They offer greater flexibility and positioning than conventional pipe junctions and can be combined with add-ons to connect different size laterals.
    Material: Composed of high-quality materials, including EPDM, ABS plastic, stainless steel, and feature integrated rubber seals​​​​​​.

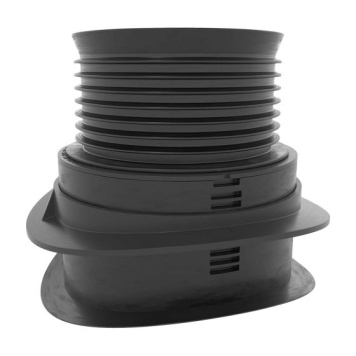

  • Storm-T Saddle
    A lateral pushfit saddle designed to connect DN150 lateral pipes into structured-wall twinwall and smooth wall plastic host pipes.
    Features an innovative pushfit design with a depth setting mechanism for optimum positioning and performance on multiple pipe thicknesses.
    Offers lower material and labour costs, reduced excavation requirements, and can be installed at any angle along the top half of the main pipeline.
    Material: EPDM, ABS plastic, and an integrated rubber seal to prevent exfiltration, enabling connection to any DN150 lateral pipe.
    Suitable for host pipes with various wall thicknesses and diameters, ensuring a universal fit for different types of plastic pipes​​​​​​​​.

Quality and Standards

Fernco Saddles comply with various British and European standards, including BS EN 681-1, BS EN 295-3, and BS EN 13259:2018, ensuring they meet the highest levels of quality and performance​​.

Fernco's Pipe Saddles represent a significant advancement in wastewater connection innovation. They offer numerous benefits over traditional junctions, including reduced installation time, improved safety, and cost savings. This range of saddles is an ideal choice for professionals looking for efficient and versatile lateral connection options in drainage systems.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
