PVCu Valves

Effast PVCu valves offer a reliable and versatile solution for controlling flow in pressure pipework systems. Available in a wide range of formats—including 2-way and 3-way ball valves, check valves, and both electrically and pneumatically actuated variants—these valves are designed for long service life and consistent performance. Made from unplasticised polyvinyl chloride (PVCu), they are lightweight, corrosion-resistant, and well-suited to applications involving aggressive or corrosive media.

Ideal for water treatment, chemical handling, and industrial fluid systems, Effast PVCu valves are also WRAS approved where applicable, ensuring safe use in potable water applications.

Technical Specification

  • Operating Temperature Range: 5°C to 60°C
  • Pressure Rating: Dependent on valve type and size (typically up to 16 bar at 20°C)
  • Valve Types Available:

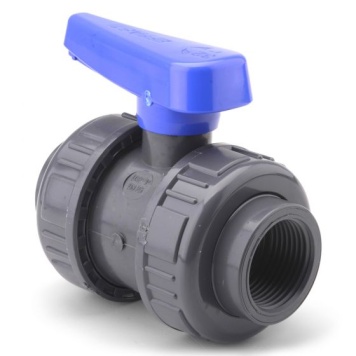

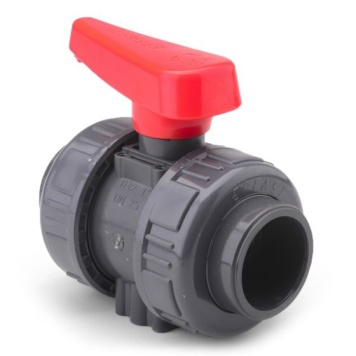

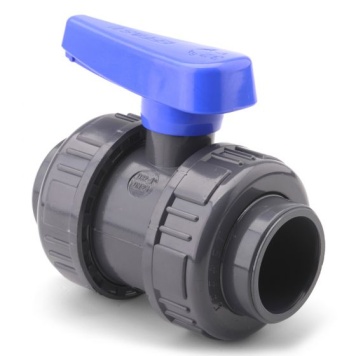

    – 2-Way and 3-Way Ball Valves

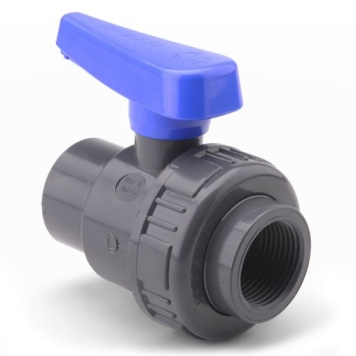

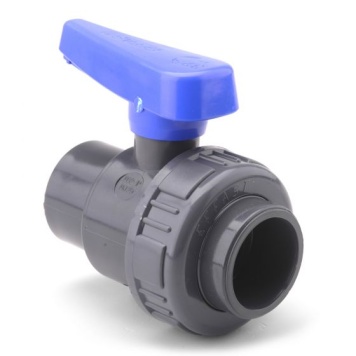

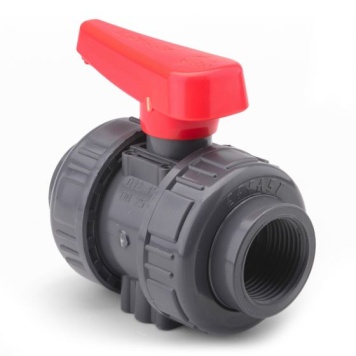

    – Single and Double Union Configurations

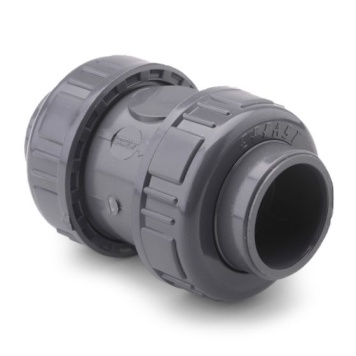

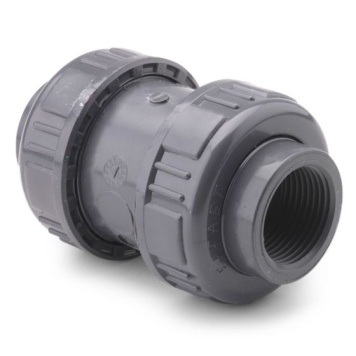

    – Check Valves (Swing and Spring Types)
    – Diaphragm Valves
    – Electric and Pneumatic Actuated Valves
  • Connection Options:
    – Plain solvent-weld
    – BSP threaded
    – Flanged
  • Standards Compliance:
    – BS 3505, BS 4346
    – EN 1452 Parts 1, 2, and 3
  • Chemical Resistance: Excellent against caustic solutions, acids, alkalis, salts, and water-soluble solvents
  • Physical Properties:
    – Lightweight and abrasion-resistant
    – Non-corrosive and non-toxic
    – Suitable for internal and sheltered external environments

Installation Overview

  • Preparation: Cut the pipe square and chamfer the end (approx. 3mm x 45°). Dry-fit the pipe and valve, and mark the insertion depth.
  • Surface Abrasion: Lightly abrade the pipe and socket to remove gloss. Avoid over-abrading. Clean both surfaces with MEK Cleaner and allow to dry.
  • Cementing: Apply PVCu solvent cement to both the pipe and valve socket using a clean brush. Assemble immediately, insert to marked depth, and hold in place briefly. Allow at least 24 hours curing time before applying system pressure.
  • Threaded Valves: Use PTFE tape on male threads. Tighten by hand, then use a strap wrench for an additional ¼ turn if necessary. Do not overtighten or use pipe wrenches.
  • Flanged Valves: Install with appropriate backing rings, gaskets, and bolts. Tighten bolts in a criss-cross pattern to evenly compress the gasket. Ensure flanged faces are aligned and properly supported.
  • Important Notes: Always install valves in a well-ventilated area. Never use sealing paste with PVCu components. Valves should be independently supported to avoid stress on joints.

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
