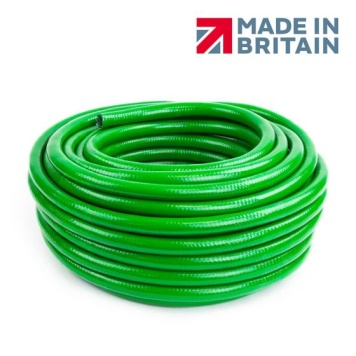

PVC Braided Hose

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: virgin polyvinyl chloride compound with high tensile polyester yarn
  • Excellent abrasion resistance
  • Operating temperature range: -20°C to 65°C
  • Pressure rated from 3 to 13 bar, dependent on size
  • Highly flexible
  • Silicone and cadmium free
  • High resistance to acids and alkalis
  • Conforms to BS6066 and ISO5774

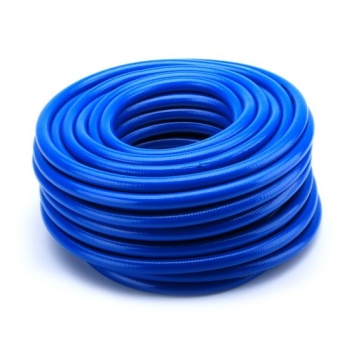

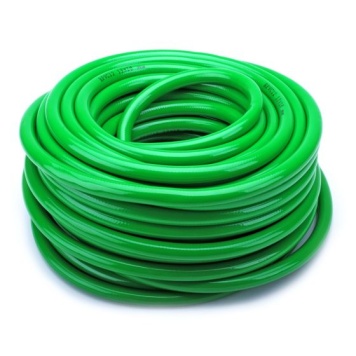

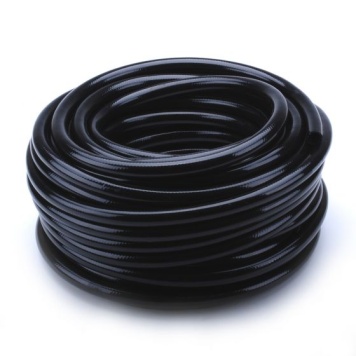

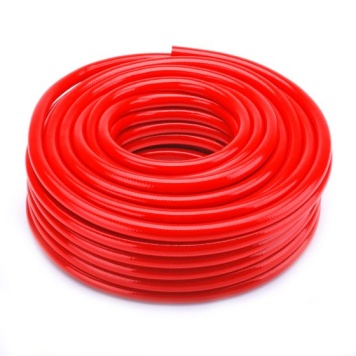

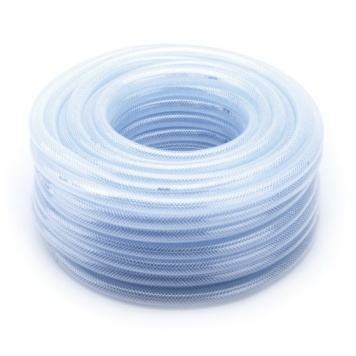

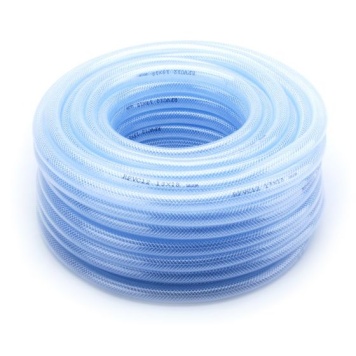

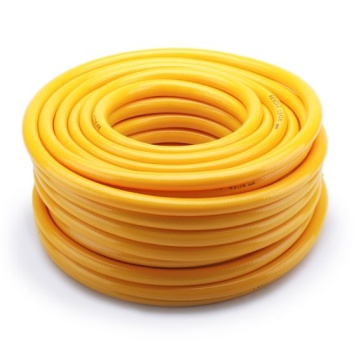

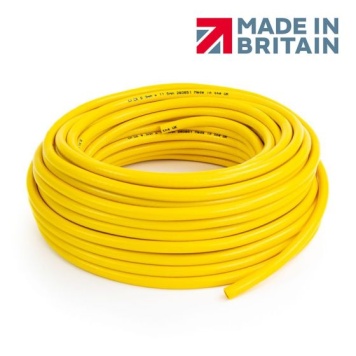

  • Available in clear, black, blue, red, yellow and green

Technical Info:

Dimensions and Pressure Ratings
Internal Diameter (mm) Internal Diameter (inch) Wall Thickness (mm) Outer Diameter (mm) Pressure Rating (bar)
5 3/16 2.5 10 13
6 1/4 2.5 11 15
8 5/16 2.5 13 15
10 3/8 2.5 15 12
13 1/2 2.5 18 12
16 5/8 2.5 21 10
19 3/4 3 25 10
25 1 3 31 9
32 1 1/4 4 40 6
38 1 1/2 4 46 5
50 2 5 60 3


Please note, the working pressures given are based upon an ambient temperature of 20°C. As the ambient temperature increases, these figures will decrease at an average rate of 15% for every additional 10°C.

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

PVC braided hose is designed as a low maintenance solution for the transportation of various fluids and gases under pressure.

Applications of use for braided hose include supplying water, oil and gas for agriculture and industry, the transference of compressed air in pneumatic equipment, factory airlines, the chemical industry and, as a result of being manufactured from materials which are FDA approved, food and beverage use.

Due to its high resistance to acids and alkalis, braided PVC hose is ideal for the conveyance of pressurised gases, liquids, powders and chemicals.

PVC braided hose is highly flexible, allowing a constant and reliable flow rate to be maintained.

The integrity of the hose is unaffected by UV, direct sunlight and general weathering, which ensures a long and dependable service life.


If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
