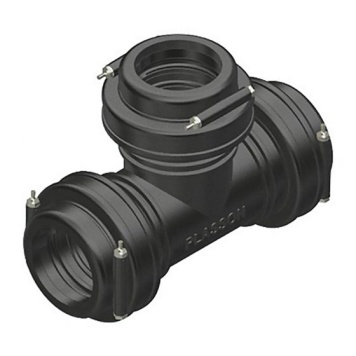

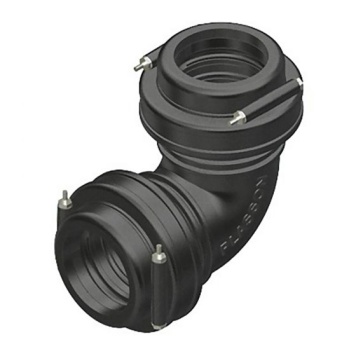

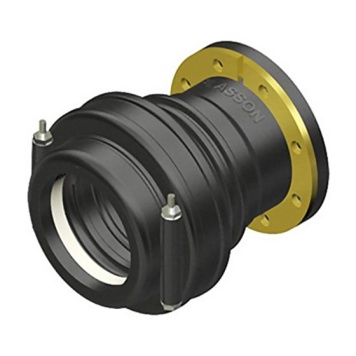

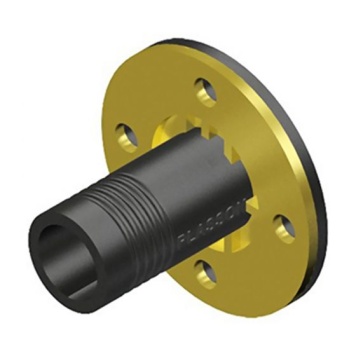

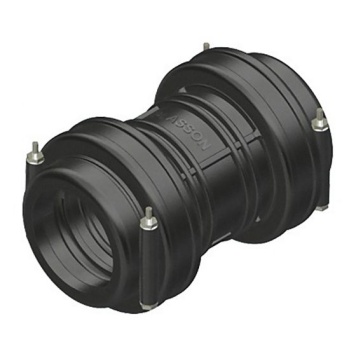

Plasson 160mm Pipe Fittings offer a robust and reliable solution for connecting large-diameter polyethylene (PE) pipes in cold water applications. Manufactured from high-grade copolymer and polypropylene, these fittings are engineered to deliver long-lasting performance under demanding conditions. With a working pressure of up to 10 bar, they are suitable for a wide range of infrastructure, utility, and agricultural installations where durability and ease of assembly are essential.
Application
Cold Water Distribution Networks: Ideal for large-scale potable water systems in municipal or commercial developments.
Irrigation and Agricultural Installations: Suited for high-volume water delivery in crop irrigation and livestock water systems.
Infrastructure & Utility Services: Used in inter-urban water supply pipelines and major service connections.
Civil Engineering Projects: Suitable for use in housing estates, industrial parks, and public infrastructure.
Technical Specification
Material:
Body: High-grade polypropylene
Nut & Components: Copolymer and engineered thermoplastics
Size: 160mm outside diameter
Connection Type: Mechanical compression
Working Pressure: Up to 10 bar at 20°C
Temperature Range: 0°C to 40°C (cold water use only)
Colour: Typically black with blue compression nuts
Standards Compliance: Manufactured to meet relevant UK and international standards for PE pipe fittings
Application Compatibility: Designed for use with PE80 and PE100 pipe grades
Installation Overview
Pipe Preparation
Cut the PE pipe square using a suitable pipe cutter. Remove any burrs and mark the insertion depth for proper alignment.
Fitting Assembly
Loosen the compression nut and insert the pipe until it reaches the internal pipe stop. Ensure that the O-ring and grip ring are properly seated within the fitting.
Tightening
Hand-tighten the nut, then use a strap wrench or appropriate tool to fully secure. Avoid overtightening, which may damage the fitting or pipe.
Testing & Commissioning
Pressurise the system gradually and check all joints for leaks. Reinspect fittings after pressure testing to ensure secure assembly.
