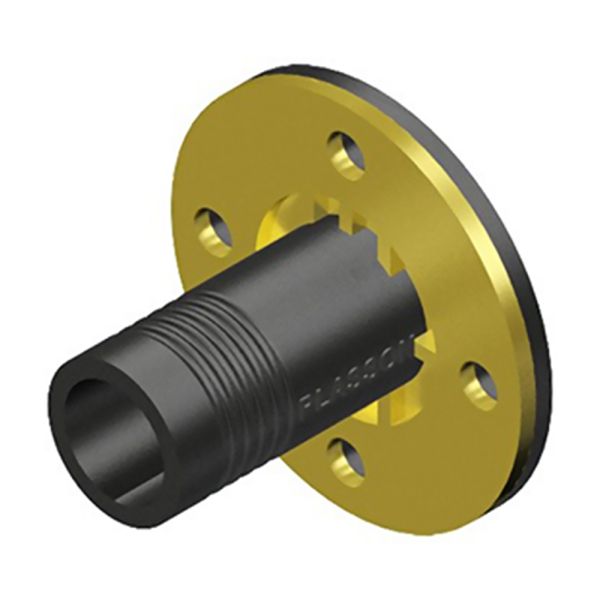

Large Spigot Flange Adaptor

Large Spigot Flange Adaptor

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufactured by Plasson
  • Pressure rated up to 10 bar
  • Sizes available from 160mm x 5" & 160mm x 6"

Flange Adaptor

Product Code d (mm) DN (inch) D (mm) H (mm) Dp (mm) S (mm) Weight (kg)
350699 160 5 250 265 210 18 4.409
350700 160 6 285 265 240 22 5.886



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PL Large Spigot Flange Adaptor 160mm x 5"
Code
350699
Product Name
PL Large Spigot Flange Adaptor 160mm x 5"
List Price
£200.63
You Pay
£120.38
You Save
40%
Qty
PL Large Spigot Flange Adaptor 160mm x 6"
Code
350700
Product Name
PL Large Spigot Flange Adaptor 160mm x 6"
List Price
£200.63
You Pay
£120.38
You Save
40%
Qty
2 products
