Meter Chambers & Boxes

A water meter boundary box is a below-ground chamber that holds a water meter and stop valve at the edge of a property. Pipestock offers boundary boxes for every common UK installation: a WRAS-approved Standard Meter Box for straightforward domestic connections, the height-adjustable Adjusta Box with four lid options for different surface finishes, and Plasson boxes for contaminated land and telescopic installations.

The box is installed at or just inside the property boundary, usually in the footpath, grass verge or driveway. This is typically where responsibility passes from the water company to the property owner, though arrangements vary; confirm the split with your local water company before planning work.

Depth is governed by the supply pipe: under the Water Supply (Water Fittings) Regulations 1999, buried supply pipework needs between 750mm and 1350mm of cover to protect it from frost and damage. The manifold sits at pipe depth, so the chamber must bridge the gap to the surface; telescopic and cut-to-length designs let the lid finish flush with final ground level, whatever the trench depth.

Standard Meter Box

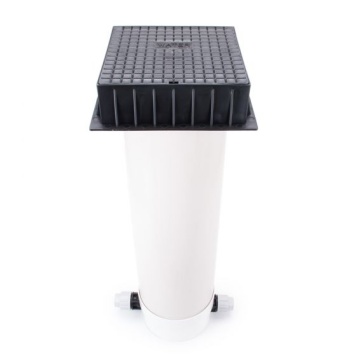

• The straightforward choice for domestic connections in clean ground. This WRAS-approved box pairs a heavy-duty plastic body with a choice of cast-iron or plastic lid, and its manifold carries the check valve, stop valve and meter seat, so it arrives ready for the water company's concentric meter. The 25mm Plasson compression fittings give a quick, secure connection to the supply pipe, the 625mm PVC guard tube trims on site for a flush lid, and Class B loading suits pavements, driveways and light vehicle traffic.

Adjusta Box Range

• The Adjusta Box has a load-bearing, screw-adjustable top that sets height and pitch on site without compromising loading capacity, so the lid finishes level and stays level, resisting the gradual depression that creates trip hazards. It comes with 25mm or 32mm connections, as pipe tails for replacements or Philmac compression fittings for new installations (Series 3 compression boxes need matching pipe liners for WRAS compliance). The Series 3 quarter-turn full-bore valve minimises pressure loss, with a double-check valve as standard for category 3 backflow protection, and the modular bayonet body separates for easier meter connection in tight excavations. Lids carry a metal detection plate, keyhole and 'Water' marking; the range is WRAS-approved, complies with BS 5834-1:2007 and BS 5834-2:2011, and is tested as a complete assembly to WIS 4-37-01, surpassing BS 5834-2 Grade B.

Plasson Contaminated Land Meter Box

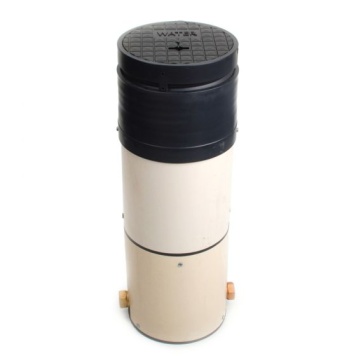

• The Plasson water meter boundary box is engineered for polluted or chemically affected ground, such as former industrial land and brownfield plots, where a standard box isn't suitable. WRAS-approved for potable water, it adjusts in height from 500mm to 800mm for a flush finish, and its 3/4" brass female threads give a corrosion-resistant connection compatible with standard fittings.

Plasson Adjustable Meter Box

• A telescopic meter box for underground installations where finished levels vary or are settled late in the job. The height-adjustable body extends to the finished ground level, accepts standard concentric water meters (not included), and is built for long-term buried service in residential and commercial installations, with easy access for readings and maintenance.

All four options share the same chamber; the difference is how the top meets your surface.

• Round Lid: The standard configuration for level ground and simple reinstatement: grass verges, gardens and footpaths where the lid finishes flush without extra framing.
• Slope and Round Lid: Adds the load-bearing Slope Adjusta unit, giving up to 10° of adjustment (round lid only) so the lid sits flush with a gradient; the pick for banked verges and sloping paths or drives.

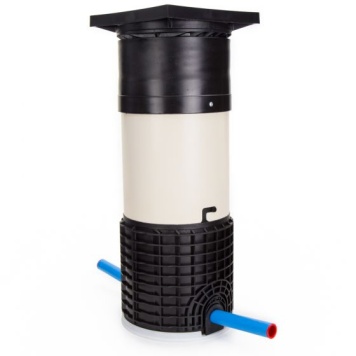

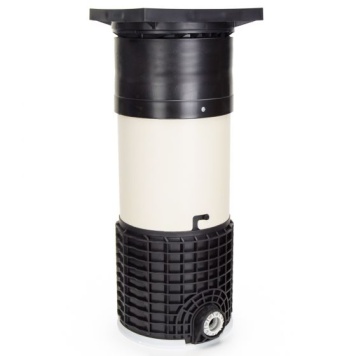

• Square Cowl and Round Lid: Adds a detachable square cowl that rotates through 360° to square the box up with paving lines and aid backfilling; choose it where the box meets block paving or slabs and alignment matters.
• Surface Box and Round Lid: Tops the chamber with a ductile iron surface box (Water lid, BS 5834 grade B), the option for hard landscaping, block-paved driveways and trafficked areas needing a robust frame and flush finish.

All lids carry a metal detection plate, keyhole and 'Water' marking as standard.

Boundary box water meter installation follows the same sequence, whichever box you fit. Treat this as a general guide; the manufacturer's instructions and your water company's requirements take precedence.

1. Check first: Contact the local water company; new connections need approval, and companies set rules on pipe materials, meter position and inspections.
2. Excavate: Dig the trench so the supply pipe will have 750mm-1350mm of cover, with working room at the box position.
3. Connect the pipework: Lay or expose the MDPE pipe and connect it to the manifold with the compression fittings, adding pipe liners where required.
4. Set the height: Stand the box vertically and trim the guard tube, or extend the telescopic or screw-adjustable section, until the lid finishes flush with the intended ground level.
5. Backfill: Backfill and compact in layers, keeping the chamber vertical and supported.
6. Finish the surface: Fit the lid, plus cowl or surface box where used, flush with the finished surface.
7. Meter and compliance: The meter is normally fitted and commissioned by the water company; all work must comply with the Water Supply (Water Fittings) Regulations 1999.

• Who is responsible for a water meter boundary box - the homeowner or the water company?

  • In most areas, the water company owns and maintains the boundary box, external stop valve and meter, while the property owner is responsible for the private supply pipe from the box to the building. Arrangements differ, so confirm with your local water company first.

• At what depth should a water meter boundary box be installed?

  • Set the box so the supply pipe running through it has between 750mm and 1350mm of cover, as required by the Water Supply (Water Fittings) Regulations 1999. The lid must finish flush with ground level; adjustable and cut-to-length designs bridge that difference cleanly.

• Does a boundary box include the water meter?

  • No. Each box here houses a standard water meter, but the meter itself is not included.

• Can a boundary box be installed in a driveway?

  • Yes, with the right specification. The Standard Meter Box is Class B load-rated, covering driveways, pavements and light vehicle traffic. In the Adjusta range, choose the Surface Box and Round Lid: its ductile iron surface box is rated to BS 5834 grade B for a robust, flush finish in block paving.

• What is the difference between a boundary box and a meter chamber?

  • Nothing; they are two names for the same product. You'll also see boundary water meter box, water meter boundary box chamber and boundary box water meter housing and cover across water company documents. All describe an underground chamber at the boundary housing the meter and stop valve.

• Are these boundary boxes WRAS-approved?

  • The Standard Meter Box, the Adjusta Box range and the Plasson Contaminated Land Meter Box are all WRAS-approved; the Adjusta range also complies with BS 5834-1:2007 and BS 5834-2:2011.
