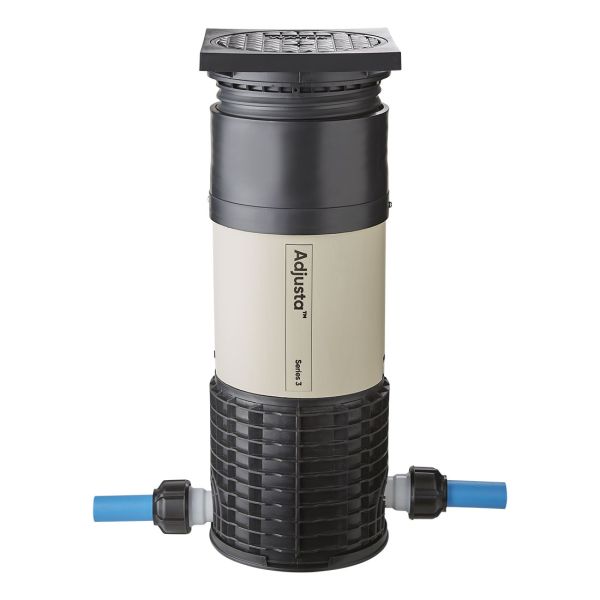

Designed for precise and professional meter installations, this boundary box incorporates the Philmac 3G connection with Slide and Tighten™ technology, allowing fittings to be easily slid into place and tightened by hand on non-contaminated land. Supplied with an optional detachable square finishing cowl (LUBA1073), it allows 360° rotation for perfect final alignment with paving materials. Compatible with 25mm and 32mm service pipes, the box also features a durable round lid marked ‘water’.
Key Features & Benefits
Philmac's new 3G connection for non-contaminated land
Square cowl for improved flush surface alignment
Round lid clearly labelled ‘water’
WRAS-approved manifold components
Frost protection to -20°C with expanded polyethylene foam pad
Rated to Grade B load - exceeds 5-tonne requirements (WIS 4-37-01)
Minimum 50-year design life
ISO 9001, ISO 14001 & ISO 45001 certified production
Adjustable height and pitch whilst maintaining loading capacity, remains level for secure installation
SKU
Supplier Code
Size (mm)
Connection Type
A (mm)
B (mm)
C (mm)
D (mm)
Weight (kg)
489573
LUBA3003
25mm
MDPE
580 - 790
217
216
516
4.72
489577
LUBA3013
32mm
MDPE
580 - 790
217
216
516
4.78
489581
LUBA3007
25mm
Compression
580 - 790
217
216
308
4.67
489585
LUBA3017
32mm
Compression
580 - 790
217
216
347
4.70
