Plastlock Coupling Plastic to Metal - Above Ground

Useful Information

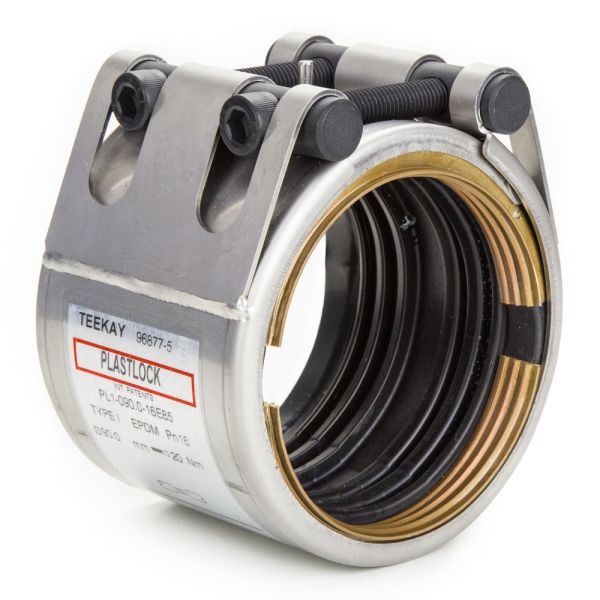

Plastlock adaptors, from Teekay, are used to connect plastic pipe and metal pipe together with speed and ease without the need for gluing or fusion technology.

They incorporate Teekay multiple seal gaskets with a specific gripping ring either side, designed to grip plastic pipes one side and metal pipes the other.

These adaptors are suitable for use with plastic pipe including Polyethylene, Polypropylene, polybutylene, PVC-C, PVC-U and ABS, as well as metal pipe including carbon steel, stainless steel, copper and copper nickel.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners Alloy Steel, PTFE coated
Gasket EPDM/NBR/HNBR/Silicone
Pressure Rating up to 16 bar
Type 1 - Above ground
Sizes 40mm - 315mm
Standards WIS-4-24-01 BS 8561:2013



teekay-plastlock-coupling

Product Code D1 Metal x Plastic (mm) W1 (mm) PN D2 (mm) D3 (mm) D4 (mm) Screw Size Weight (kg)
402897 42.4 x 40 88 16 60 76 132 2 x M8 0.64
402898 48.3 x 50 88 16 67 84 136 2 x M8 0.69
402899 60.3 x 63 88 16 80 96 145 2 x M8 0.91
402900 76.1 x 75 88 16 94 109 185 2 x M10 0.96
402901 88.9 x 90 88 16 107 123 193 2 x M10 1.06
402902 108 x 110 88 16 126 144 208 2 x M10 1.42
402903 114.3 x 110 89 16 133 149 211 2 x M10 1.51
402904 125 x 125 115 16 159 184 241 2 x M12 2.66
402905 139.7 x 140 116 16 159 184 241 2 x M12 2.66
402906 168.3 x 160 116 16 189 214 265 2 x M12 3.41
402907 180 x 180 119 10 - - - - -
402908 219.3 x 200 120 10 226 252 321 2 x M16 6.70
402909 219.3 x 225 120 10 251 278 342 2 x M16 6.90
402910 273 x 250 120 10 276 302 364 2 x M16 7.30
402911 323.9 x 315 120 10 341 368 418 2 x M16 9.20



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402897TK Plastlock Adaptor T1 16 Bar 42.4mm x 40mm £166.58 40% £99.95
402898TK Plastlock Adaptor T1 16 Bar 48.3mm x 50mm £169.35 40% £101.61
402899TK Plastlock Adaptor T1 16 Bar 60.3mm x 63mm £206.40 40% £123.84
402900TK Plastlock Adaptor T1 16 Bar 76.1mm x 75mm £210.90 40% £126.54
402901TK Plastlock Adaptor T1 16 Bar 88.9mm x 90mm £220.24 40% £132.14
402902TK Plastlock Adaptor T1 16 Bar 108mm x 110mm £232.77 40% £139.66
402903TK Plastlock Adaptor T1 16 Bar 114.3mm x 110mm £232.77 40% £139.66
402904TK Plastlock Adaptor T1 16 Bar 125mm x 125mm £255.23 40% £153.14
402905TK Plastlock Adaptor T1 16 Bar 139.7mm x 140mm £440.68 40% £264.41
402906TK Plastlock Adaptor T1 16 Bar 168.3mm x 160mm £491.29 40% £294.77
402907TK Plastlock Adaptor T1 10 Bar 180mm x 180mm £491.29 40% £294.77
402908TK Plastlock Adaptor T1 10 Bar 219.3mm x 200mm £829.62 40% £497.77
402909TK Plastlock Adaptor T1 10 Bar 219.3mm x 225mm £860.06 40% £516.04
402910TK Plastlock Adaptor T1 10 Bar 273mm x 250mm £884.88 40% £530.93
402911TK Plastlock Adaptor T1 10 Bar 323.9mm x 315mm £1,392.12 40% £835.27
