Introduction to Geberit Tools & Jaws

Geberit Tools & Jaws provide the precision, reliability, and efficiency needed for professional pipe pressing installations. Engineered for ease of use in even the most restricted spaces, Geberit pressing tools and accessories are designed to deliver high performance and lasting durability. With a lightweight, compact design and advanced features such as integrated LEDs for low-light environments, these tools ensure secure and consistent connections for Geberit piping systems. The Geberit pressing jaws and collars further enhance flexibility, catering to a wide range of pipe dimensions and material types.

Key Features & Benefits:

Compact and Lightweight Tools:
- Easy handling in restricted construction environments.
- Non-slip, slim handles for improved grip and manoeuvrability.
Integrated LED Lighting:
- Provides better visibility in dimly lit areas, ensuring precision during pressing operations.

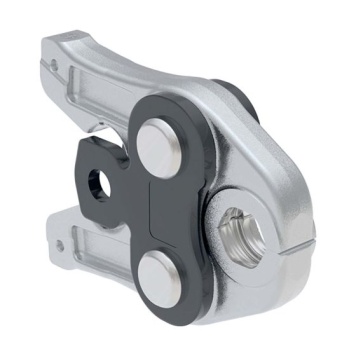

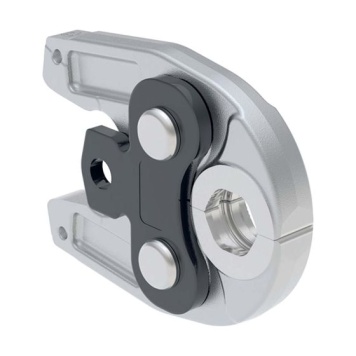

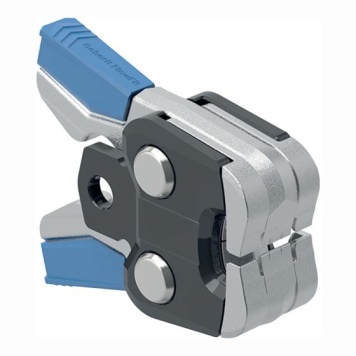

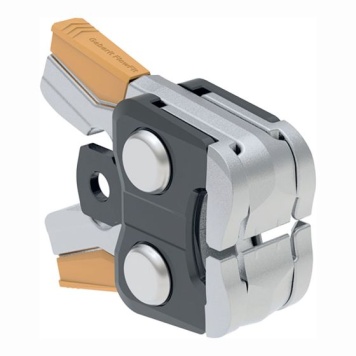

Durable and Service-Free Jaws:
- Designed for a long service life without the need for maintenance.
- Compatible with Mapress systems.
Wide Range of Applications:
- Pressing jaws available for dimensions up to 35 mm
- Pressing collars cater to larger dimensions starting at 35 mm
High Performance and Testing Capability:
- Electrohydraulic drive ensures powerful and consistent pressing.
- Jaws can be tested for reliability using the Geberit PowerTest.

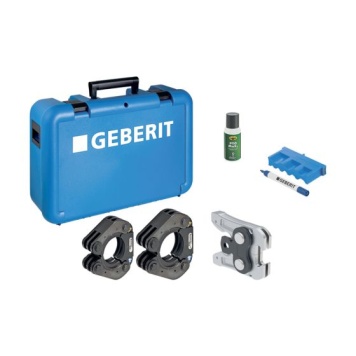

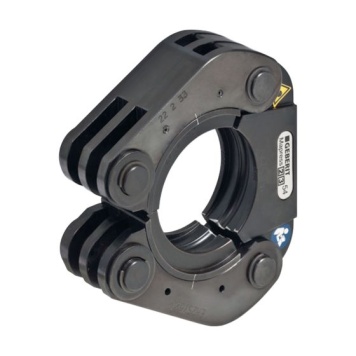

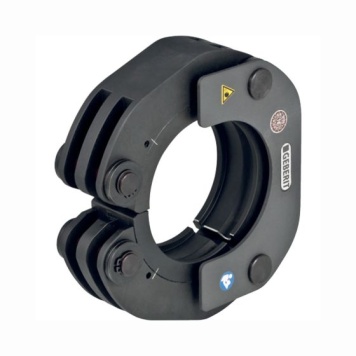

Ease of Use with Pressing Collars:
- Snap mechanism securely holds the collar in place on the fitting, allowing for hassle-free pressing in larger dimensions.

Installation Overview

Select the Right Tool and Jaw/Collar:
- Choose the appropriate pressing tool, jaw, or collar based on the pipe material and dimensions.
Prepare the Fitting:
- Position the fitting securely on the pipe and check alignment.
Attach the Jaw or Collar:
- For jaws, position them directly on the fitting.

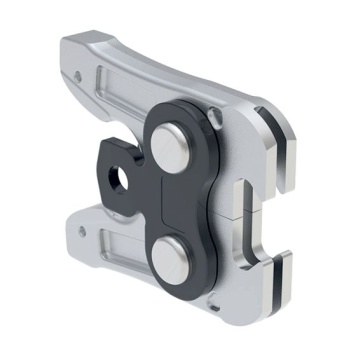

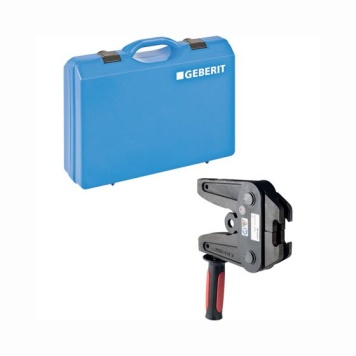

- For collars, secure the collar using the integrated snap mechanism before attaching the pressing tool with adaptor jaw.
Press the Connection:
- Activate the tool, ensuring the pressing operation is completed fully and securely.
Inspect the Connection:
- Verify the pressed fitting for any misalignments or gaps, ensuring a leak-proof seal.

More Info

Compare Geberit Press Tools

IMPORTANT: Ensure correct compatibility when purchasing Geberit Press Tools. Each item is listed as [1], [2] or [2XL]. Jaws & adaptors will only work with the respective numbered tool.

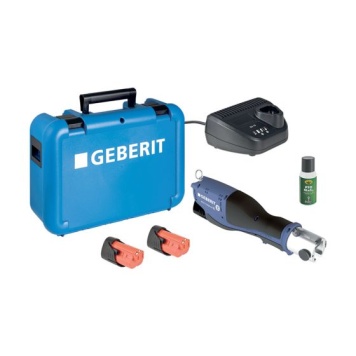

Geberit offer three different press tools for use with the Mapress System, these being the ACO 103plus, 203plus and 203XLplus. The three tools are designed to suit different pipe size ranges and usage demands. The most compact option is suited to smaller diameter installations and lighter duty work, offering a lower pressing force and reduced weight for ease of handling. The mid-range model increases both pressing force and size capacity, making it suitable for a wider variety of commercial and residential applications. The largest option extends the pressing range significantly, supporting very large diameters while maintaining the same robust build quality, battery technology and safety features found across the range.

Choosing the Right Tool

Selection should be based primarily on the pipe diameters you work with most often. For installers focused on domestic systems and smaller pipework, a lighter and more compact tool is typically sufficient and easier to manoeuvre in confined spaces. If your work spans both domestic and commercial installations, a higher force tool with an extended size range offers greater flexibility without moving into heavy-duty territory. For large-scale commercial or industrial projects involving oversized pipework, the high-capacity model is the most appropriate choice, providing the necessary force and compatibility to handle demanding applications efficiently.

SKU	487811	487812	487813
Name	ACO 103plus	ACO 203plus	ACO 203XLplus
Compatibility	[1]	[2]	[2] & [2XL]
Manufacturer Code	691.017.P5.1	691.219.P5.2	691.229.P5.2
Size Range	12mm to 32mm	12mm to 66.7mm	12mm to 108mm
Nominal Force	19kN	32kN	32 kN
Protection Degree	IP20	IP20	IP20
Nominal Voltage	230V AC	230V AC	230V AC
Operating Voltage	12V DC	18V DC	18V DC
Battery Type	Lithium-ion	Lithium-ion	Lithium-ion
Operating Temperature	-20°C to +60°C	-20°C to +60°C	-20°C to +60°C
Rechargeable Battery Operating Temperature	-10°C to +50°C	-10°C to +50°C	-10°C to +50°C
Sound Pressure Level	75.5 dB(A)	78 dB(A)	78 dB(A)
Maximum Sound Power Level	86.5 dB(A)	89 dB(A)	89 dB(A)
Maximum Vibration Emission Value	2.5 m/s²	2.5 m/s²	2.5 m/s²
Power Consumption	55W	90W	90W
Weight of Main Element	6.980kg	9.739kg	10.704kg

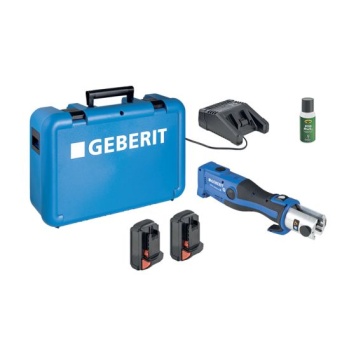

Includes	Battery charger, 2x batteries, cleaning and lubricating agent, and protective case.	Battery charger, 2x batteries, cleaning and lubricating agent, and protective case.	Battery charger, 2x batteries, cleaning and lubricating agent, and protective case.
