Blow Guns

Introduction

The Prevost Blow Gun is a high-quality, compact, lightweight tool for various compressed air applications. Built for durability and ease of use, it features an embedded plug that seamlessly connects with Prevost S1 safety couplings, ensuring a leak-free connection. This blowgun is ideal for professional and industrial use, providing powerful and precise air output while maintaining safety compliance.

Application

The Prevost Blow Gun is suitable for a range of industrial and workshop tasks, including:

  • Blowing away debris and dust
  • Cleaning work surfaces and machinery
  • Drying tools and workstations
  • Removing shavings from woodworking or metalworking
  • Use in automotive, manufacturing, and assembly lines

Key Features & benefits

Efficiency & Performance

  • Powerful Airflow – Delivers a strong, targeted air stream for effective cleaning and drying.
  • Progressive Trigger – Allows precise control over airflow intensity.
  • Low Air Consumption – Optimised for energy efficiency without compromising performance.

Durability & Design

  • Lightweight & Compact – Reduces hand fatigue during prolonged use.
  • Waterproof Polyamide Body – Ensures longevity and protects internal components.
  • Scratch-Resistant Material – Prevents damage to delicate surfaces.

Safety & Compliance

  • OSHA-Certified Safety Nozzles – Meets 41 CFR § 50-204-8 and 29 CFR 1910.242.b regulations.
  • Integrated Safety Coupling – Prevents accidental disconnection for a secure user experience.
  • RoHS & REACH Compliant – Manufactured using materials free from hazardous substances.

Technical Specification

  • Recommended Pressure: 6 bar to 12 bar
  • Service Temperature: -15°C to +70°C
  • Weight: 88g (for IBG 06MTL model)
  • Noise Level: Varies by model, ranging from 74 dBA (silent version) to 90 dBA (OSHA composite nozzle)
  • Blowing Force: Up to 390g depending on the model
  • Dynamic Pressure at 10mm: Up to 2.5 bar
  • Material: Polyamide composite or galvanised steel (depending on the variant)

Istallation Overview

Connection to Air Supply:

  • Ensure the air supply is regulated at the recommended 6 bar pressure.
  • Connect the blow gun to a Prevost (quick-safety coupling) for a leak-free setup.

Nozzle Selection:

  • Choose the appropriate nozzle based on application requirements (e.g., silent, OSHA-compliant, air screen).

Operation:

  • Use the progressive trigger to control airflow intensity.
  • Direct the airflow at an angle for efficient dust or debris removal.

Storage & Maintenance:

  • Store in a clean, dry environment when not in use.
  • Regularly inspect the nozzle and trigger mechanism for any blockages or wear.

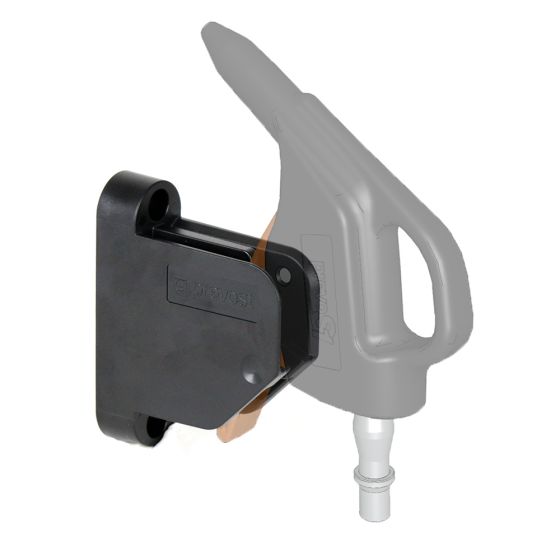

  • Use the optional (BG FIX) or (BG FIXM) mounting brackets for convenient storage.
