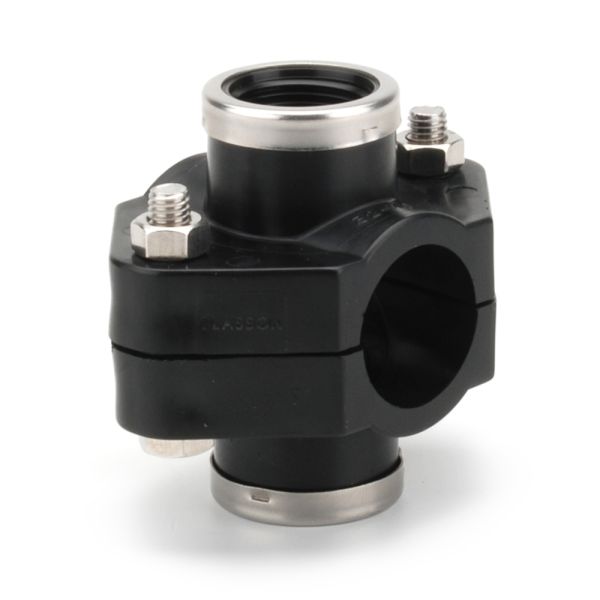

Plastica Alfa Clamp Saddle Double

Loading...
main product photo
More Info
Useful Information

Technical Specification

  • Sizes Available: 25mm x 1/2" - 200mm x 4"
  • Clamp Material: Polypropylene
  • Gasket Material: NBR – Nitrile Rubber (70 Shore)
  • Reinforcing Ring: Stainless Steel AISI 430
  • Outlet Type: Threaded double outlet
  • Max Operating Temperature: 100°C
  • Pressure Rating: Up to 16 bar (size dependent)
  • Approved Fluids: Drinking water, wine, alimentary fluids
  • Certifications: UNI9561, ISO 13460, UNI EN 10226/1-2, ANSI/ASME B1.20.1, UNI7990, UNI EN 12201-2, UNI EN ISO 15494

Description

The Plastica Alfa double outlet clamp saddle is engineered for efficient branching of existing pipelines in two opposite directions. Constructed from high-grade polypropylene with a nitrile rubber (NBR) gasket and a stainless steel AISI 430 reinforcing ring, it offers secure and leak-resistant connections. Suitable for use with a variety of fluids, including drinking water and food-grade substances, it supports installations requiring dual outlets for pipe extensions or auxiliary equipment integration.

Key Features & Benefits

  • Dual-Threaded Outlets: Allows simultaneous branching in opposite directions or attachment of instruments such as pressure gauges or meters.
  • Durable Construction: Made from polypropylene with corrosion-resistant stainless steel reinforcement.
  • Leak-Resistant Seal: Integrated 70 Shore NBR gasket ensures a tight, reliable connection under pressure.
  • Food & Water Safe: Certified for use with potable water, wine, and alimentary fluids, compliant with multiple international standards.
  • High Operating Range: Handles temperatures up to 100°C and pressure ratings up to 16 bar (size dependent).
  • Standards Compliant: Fully conforms to key industry standards, including UNI9561, ISO 13460, UNI EN 10226/1-2, UNI7990, and UNI EN ISO 15494.

Clamp Saddle - Double

Product Code D (mm) G (inch) D1 (mm) N (mm) L (mm) H (mm) H1 (mm)
350671 25 ½ 12 84.5 50 80.5 19.5
350672 25 ¾ 12 84.5 50 80.5 19.5
350673 32 ½ 16.5 84.5 50 80.5 19.5
350674 32 ¾ 16.5 84.5 50 80.5 19.5
350675 40 ½ 17.5 83 60 89.5 19.5
350676 40 ¾ 17.5 83 60 89.5 19.5
350677 50 ½ 17.5 90 68 99 18
350678 50 ¾ 17.5 90 68 100 19
350679 50 1 25 90 68 103 22
350680 63 ½ 17.5 96 67.5 115.5 17
350681 63 ¾ 17 96 67.5 115.5 17
350682 63 1 23.5 96 67.5 115.5 17
350683 63 1¼ 31 96 67.5 115.5 17
350684 75 ½ 18 114 75 132.5 19.5
350685 75 ¾ 18 114 75 132.5 19.5
350686 75 1 25 114 75 132.5 19.5
350687 75 1¼ 32 114 75 132.5 19.5
350688 75 1½ 38 114 75 132.5 19.5
350689 90 ½ 18 125 84.5 149 20
350690 90 ¾ 18 123 84.5 149 20
350691 90 1 25 125.5 84.5 149 20
350692 90 1¼ 32 125 84.5 149 20
350693 90 1½ 38 127 84.5 149 20
350694 90 2 49 125 84.5 149 20
350637 110 ½ 18 146.5 99 169 18
350638 110 ¾ 24 150 99 169 18
350639 110 1 25 150 99 169 18
350640 110 1¼ 39 150 99 169 18
350641 110 1½ 41 150 99 169 18
350642 110 2 41 150 99 176.5 22.5
350643 110 2½ 41 150 99 176.5 22.5
350644 110 3 41 150 99 176.5 22.5
350645 125 ¾ 18 171 99.5 186 19
350646 125 1 25 171 99.5 186 19
350647 125 1¼ 32 171 99.5 186 19
350648 125 1½ 38 171 99.5 186 19
350649 125 2 49 171 99.5 186 19
350650 140 1 30.5 180 137 214 25
350651 140 1¼ 38 180 137 214 25
350652 140 1½ 43 180 137 214 25
350653 140 2 51 180 137 214 25
350654 140 3 77 180 137 214 25
350655 160 ½ 30 197 137 238.5 25
350656 160 ¾ 30 197 137 238.5 25
350657 160 1 30 197 137 238.5 25
350658 160 1¼ 38 203 137 238.5 25
350659 160 1½ 43.5 204 137 234.5 25.5
350660 160 2 51 208 137 229.5 25.5
350661 160 3 77 208 137 251 35.5
350662 160 4 102 208 137 247 36.5
350663 200 ½ TBC TBC TBC TBC TBC
350664 200 ¾ 26 270 195 274.5 23
350665 200 1 26 270 195 274.5 23
350666 200 1¼ 30 270 195 272 25
350667 200 1½ 44 270 195 272.5 25.5
350668 200 2 51.5 270 195 271 25
350669 200 3 77 270 195 286.5 35.5
350670 200 4 102 270 195 290.5 35.5



Product Code Pressure Rating (bar) No. of Bolts Bolt Type O.R. Joint (mm) Weight (g)
350671 16 2 8 x 35 15.47 x 3.53 144
350672 16 2 8 x 35 15.47 x 3.53 154
350673 16 2 8 x 35 21.83 x 3.53 141
350674 16 2 8 x 35 21.83 x 3.53 155
350675 16 2 8 x 35 28.17 x 3.53 146
350676 16 2 8 x 35 28.17 x 3.53 152
350677 16 2 8 x 35 37.69 x 3.53 156
350678 16 2 8 x 35 37.69 x 3.53 169
350679 16 2 8 x 35 37.69 x 3.53 189
350680 16 4 8 x 50 31 x 5 250
350681 16 4 8 x 50 31 x 5 287
350682 16 4 8 x 50 31 x 5 294
350683 16 4 8 x 50 43.82 x 5.34 296
350684 12.5 4 8 x 50 56.52 x 5.34 303
350685 12.5 4 8 x 50 56.52 x 5.34 329
350686 12.5 4 8 x 50 56.52 x 5.34 341
350687 12.5 4 8 x 50 56.52 x 5.34 350
350688 12.5 4 8 x 50 56.52 x 5.34 356
350689 12.5 4 8 x 50 56.52 x 5.34 336
350690 12.5 4 8 x 50 56.52 x 5.34 368
350691 12.5 4 8 x 50 56.52 x 5.34 379
350692 12.5 4 8 x 50 56.52 x 5.34 369
350693 12.5 4 8 x 50 56.52 x 5.34 374
350694 12.5 4 8 x 50 56.52 x 5.34 460
350637 12.5 4 8 x 50 49 x 6.5 463
350638 12.5 4 8 x 50 49 x 6.5 469
350639 12.5 4 8 x 50 49 x 6.5 482
350640 12.5 4 8 x 50 49 x 6.5 486
350641 12.5 4 8 x 50 49 x 6.5 486
350642 12.5 4 8 x 50 49 x 6.5 520
350643 12.5 4 8 x 50 49 x 6.5 519
350644 12.5 4 8 x 50 49 x 6.5 519
350645 12.5 4 8 x 50 72.39 x 5.34 476
350646 12.5 4 8 x 50 72.39 x 5.34 481
350647 12.5 4 8 x 50 72.39 x 5.34 492
350648 12.5 4 8 x 50 72.39 x 5.34 500
350649 12.5 4 8 x 50 72.39 x 5.34 526
350649 12.5 4 8 x 50 72.39 x 5.34 526
350650 16 6 8 x 60 85.09 x 5.34 916
350651 16 6 8 x 60 85.09 x 5.34 914
350652 16 6 8 x 60 85.09 x 5.34 918
350653 16 6 8 x 60 85.09 x 5.34 1066
350654 16 6 8 x 60 85.09 x 5.34 1072
350655 16 6 8 x 60 85.09 x 5.34 958
350656 16 6 8 x 60 85.09 x 5.34 958
350657 16 6 8 x 60 85.09 x 5.34 958
350658 16 6 8 x 60 85.09 x 5.34 958
350659 16 6 8 x 60 85.09 x 5.34 1010
350660 16 6 8 x 60 85.09 x 5.34 1004
350661 16 6 8 x 60 85.09 x 5.34 1100
350662 16 6 8 x 60 85.09 x 5.34 1142
350663 12.5 6 12 x 70 114.7 x 7 TBC
350664 12.5 6 12 x 70 114.7 x 7 2230
350665 12.5 6 12 x 70 114.7 x 7 2230
350666 12.5 6 12 x 70 114.7 x 7 2164
350667 12.5 6 12 x 70 114.7 x 7 2378
350668 12.5 6 12 x 70 114.7 x 7 2198
350669 12.5 6 12 x 70 114.7 x 7 2298
350670 12.5 6 12 x 70 114.7 x 7 2342



Please note: The pressure ratings given are based on an operating temperature of 20°C. If the temperature is increased, the pressure rating will be reduced.

Basic Fitting Guidelines:

Pipestock always advocate following the manufacturer's guidelines when installing pipe or pipe equipment. Here are some basic guidelines:

  1. After locating the area of pipe where you wish to use the fitting, prepare the clamp saddle, the bolts and the O-ring.

    Single Outlet Clamp Saddle Fitting - Pipestock

  2. Position the lower part of the saddle in the exact position you want it.

    Single Outlet Clamp Saddle Fitting - Pipestock

  3. After inserting the O-ring in its proper seat, position the upper part of the saddle and start screwing the bolts in.

    Single Outlet Clamp Saddle Fitting - Pipestock

  4. Screw the bolts in with the correct tools to make sure the saddle is tight to the pipe.

    Single Outlet Clamp Saddle Fitting - Pipestock

  5. Once secure, drill the pipe perpendicularly within the outlet space. Once the hole is complete, the threaded part is ready to be connected.

    Single Outlet Clamp Saddle Fitting - Pipestock

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
