Plasson Compression Fittings

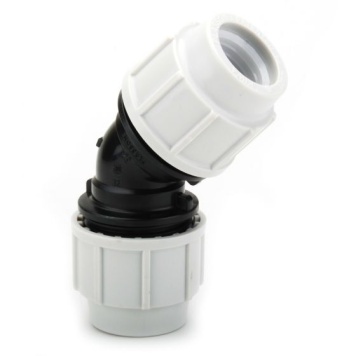

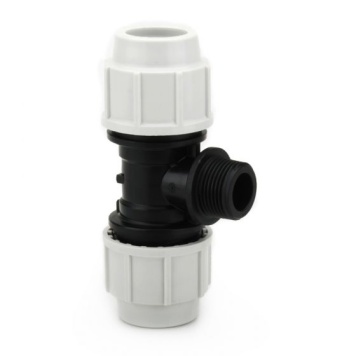

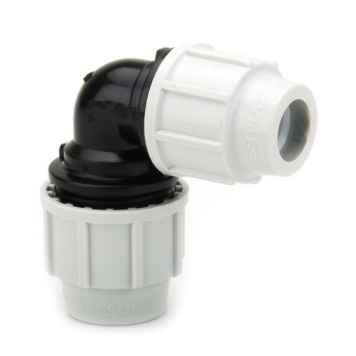

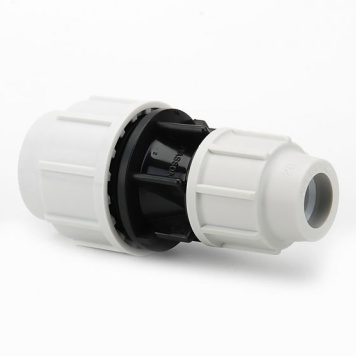

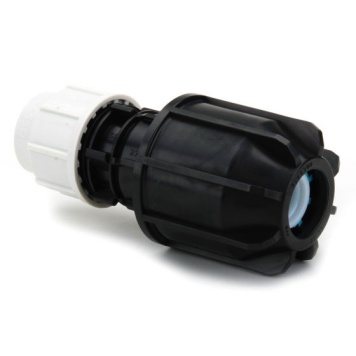

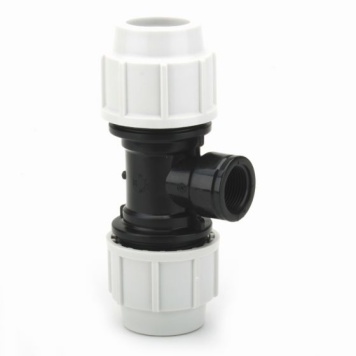

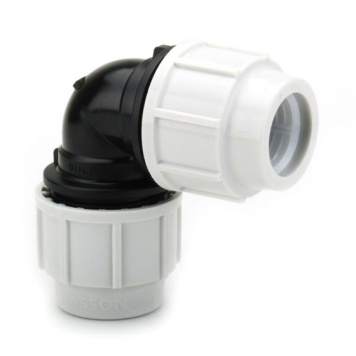

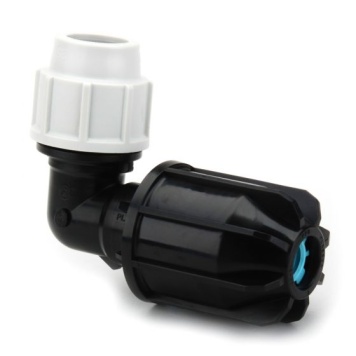

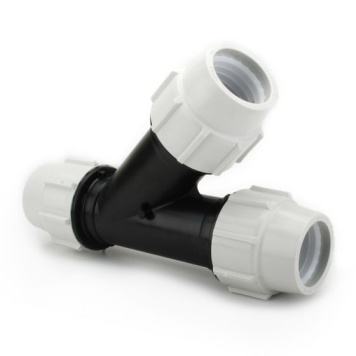

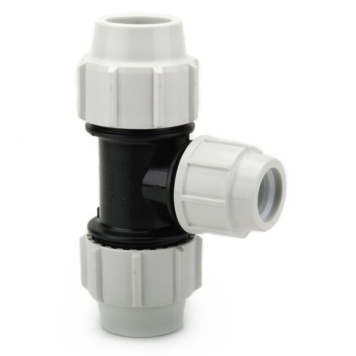

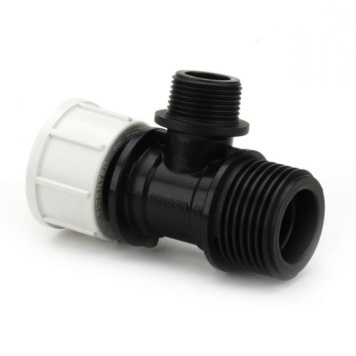

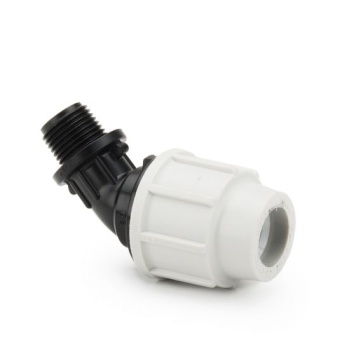

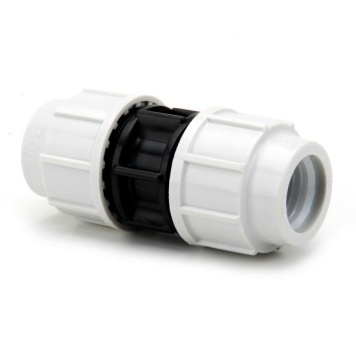

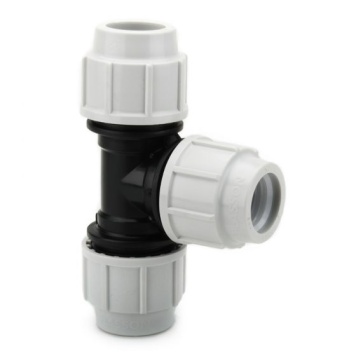

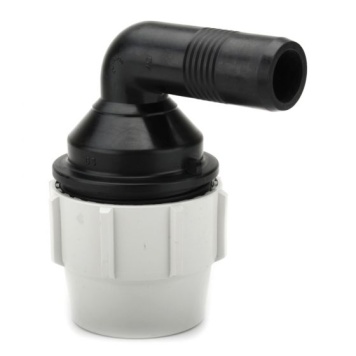

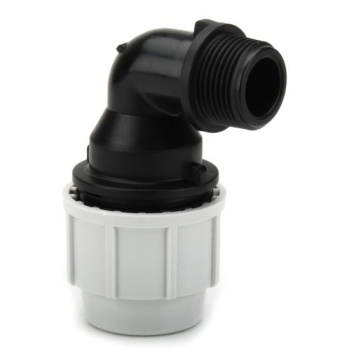

Plasson Compression Fittings provide a durable and versatile solution for connecting polyethylene (PE) pipes across a broad range of fluid handling applications. Designed for performance, longevity, and ease of installation, these fittings are capable of withstanding working pressures up to 16 bar. The range includes straight connectors, tees, elbows, adaptors, and integrated valves, enabling flow control and secure pipework connections without the need for heat fusion or specialist tools. These WRAS-approved fittings are precision-engineered to deliver leak-free service under demanding site conditions.

Application

  • Potable Water Supply: Approved for cold water distribution systems in domestic, municipal, and commercial settings.
  • Irrigation and Agriculture: Ideal for use in field irrigation systems, livestock watering, and horticulture.
  • Industrial and Mining: Suitable for handling non-aggressive fluids in process and utility water networks.
  • Infrastructure Projects: Used in inter-urban and urban civil engineering works for water mains and utility pipework.
  • Landscape and Parks: Reliable in low-pressure landscaping and sprinkler installations.

Technical Specification

  • Material:
  • Body: Polypropylene (PP)
  • O-Ring: Nitrile Rubber (NBR)
  • Clamp Ring: Acetal resin or stainless steel (depending on fitting)
  • Size Range: 16mm to 125mm outside diameter
  • Working Pressure: Up to 16 bar at 20°C
  • Temperature Range: 0°C to 40°C (cold water only)
  • Standards Compliance:
  • WRAS approved
  • ISO 17885 (fitting performance)
  • ISO 4427 / EN 12201 (pipe compatibility)
  • Additional Options:
  • Flow-regulating valves

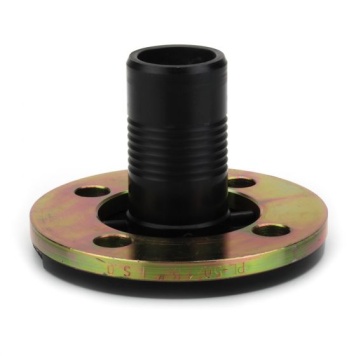

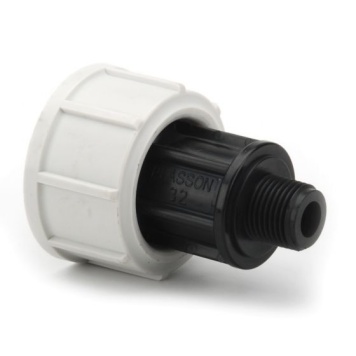

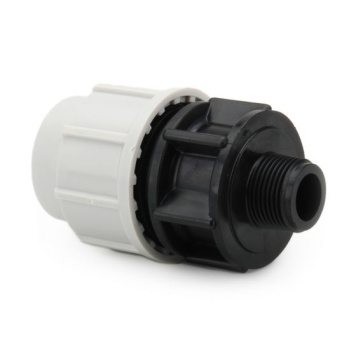

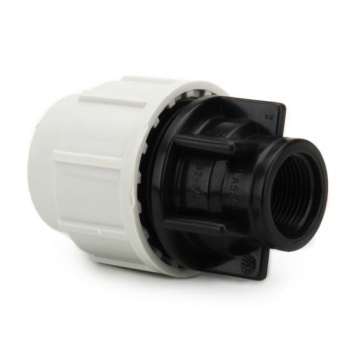

  • Transition fittings for metal and threaded connections

Installation Overview

  • Preparation: Cut PE pipe square and remove any burrs. Mark the insertion depth based on the fitting size to ensure full engagement.
  • Disassembly (if needed): Loosen the nut and remove the internal components (grip ring and support sleeve, if included).

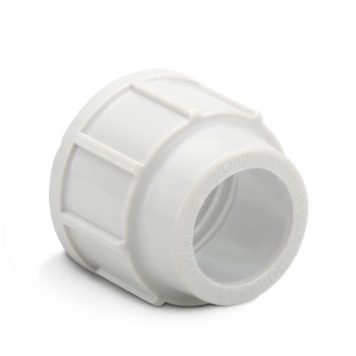

  • Assembly: Slide the compression nut and grip ring onto the pipe. Insert the pipe into the fitting body until it reaches the internal stop. Tighten the nut by hand, then finish with a wrench until secure—avoid overtightening.
  • Testing & Commissioning: Once assembled, pressure test the system up to 1.5 times the working pressure to verify integrity. Suitable for both above- and below-ground installations.

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
