Plasson Reducing Tee 90 F BSP
Useful Information
Technical Specification
- Pressure Rating: Up to 16 bar
- Connection Type: Compression x BSP Female x Compression
- Available Sizes: 20mm - 32mm
- Material: Polypropylene body, acetal grip rings, NBR O-rings
- Standards Compliance: ISO 14236, ISO 3458, ISO 3459, ISO 3501, ISO 3503
- Temperature Range: 0°C to 40°C (cold water applications)
Description

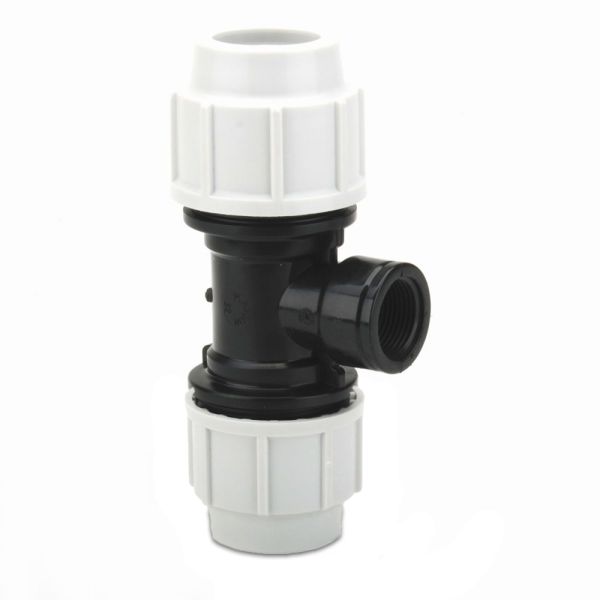

The Plasson Reducing Tee 90° Female BSP is a robust three-way fitting designed to connect two different sizes of metric polyethylene (PE) pipe with a central BSP female threaded outlet. It’s the ideal solution for creating branch lines to threaded components such as valves, meters, or taps. Built to withstand pressures up to 16 bar, this fitting combines durability, versatility, and ease of installation in water, irrigation, and low-pressure industrial systems.
Key Features & Benefits
- High-Quality Construction: Manufactured by Plasson – a trusted name in compression fittings
- Durable Materials: Corrosion- and impact-resistant polypropylene body
- Leak-Free Sealing: NBR O-rings ensure a secure, watertight connection
- Quick Installation: Pre-assembled for easy on-site fitting without special tools
- Flexible Connections: Perfect for linking PE pipe systems with BSP-threaded equipment
- Applications: Ideal for water supply networks, irrigation lines, agricultural use, and light industrial systems
| SKU | Size (mm) | Branch Thread Size (") | Size (mm) |
| 371668 | 20 | 3/4 | 16 |
| 371669 | 25 | 3/4 | 20 |
| 371670 | 32 | 1 | 25 |
