Geberit Mapress Carbon Steel

Geberit Mapress Carbon Steel is an economical press-fit piping system designed for use in heating, compressed air, and industrial applications. Offering high strength and corrosion resistance, this system is ideal for closed-circuit installations where cost-efficiency is a priority. Available in two designs—zinc-plated or with a plastic coating—it provides reliable performance for both surface-mounted and concealed installations, ensuring robust connections without the need for welding or soldering.

• Heating Systems: Provides an efficient and reliable solution for high-temperature heating systems, withstanding pressures up to 25 bar.
• Compressed Air Systems: Designed to handle high-pressure air distribution with excellent performance, ensuring secure, long-lasting connections.
• Industrial Applications: With high mechanical strength, it is ideal for various industrial applications, including cooling systems and solar installations.

• Economical Solution: Designed to provide cost-efficient performance for large-scale installations.

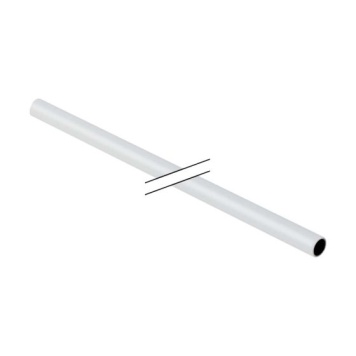

• Corrosion Protection: Available with either a cream polypropylene plastic coating or outside zinc plating to prevent corrosion.
• Pressing Jaw Guide: Ensures precise and secure pressing, reducing installation errors.
• Visual Safety Indicators: Red pressing indicator ensures easy identification and verification of connections.
• Quick Installation: The press-fit system allows fast, flame-free installation, significantly reducing labour time.

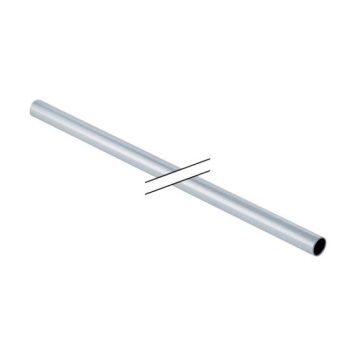

• Material: Non-alloy carbon steel (1.0034) with options for outside zinc plating or polypropylene coating for corrosion resistance.
• Operating Pressure: Suitable for systems with pressures up to 25 bar (2.5 MPa).
• Temperature Range: Approved for heating water up to 120°C.
• Seal Ring: CIIR black seal ring for heating water, cooling water, and compressed air applications.

1. Cut and Deburr: Cut the carbon steel pipe to length and ensure proper deburring to avoid damage to the seal ring.
2. Mark Insertion Depth: Mark the insertion depth on the pipe for proper fitting alignment.
3. Prepare the Fitting: Remove the protection plug and inspect the seal ring for cleanliness and condition.
4. Insert Pipe: Ensure the pipe is fully inserted into the fitting up to the marked depth.
5. Press the Fitting: Use the correct pressing tool and ensure proper alignment before completing the press.
6. Check Pressing Indicator: Remove the red pressing indicator to confirm the connection is properly secured.
