Material: Non-alloy steel 1.0034 E195 (EN 10305), brass, gunmetal
Seal Ring: CIIR, black
Flat Gasket Material: EPDM
Temperature Range: 0–100°C (with EPDM flat gasket)
Exterior Finish: Zinc-plated for corrosion resistance
Leak Proofing: Leaky when unpressed for installation safety
Thread Type: Male threaded connection for use with threaded pipes
Description

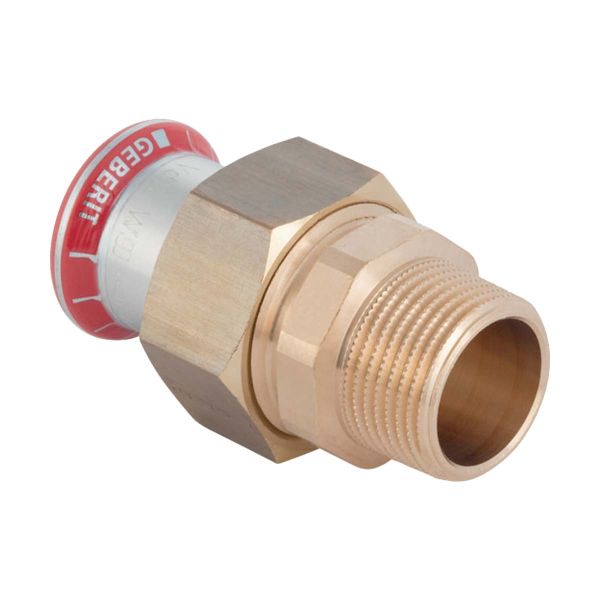

The Geberit Mapress Carbon Steel Male Threaded Union is designed to join press-fit systems with threaded components, allowing for easy disconnection and reconnection when needed. This union fitting is ideal for high-pressure applications in heating, cooling, and industrial systems where robust and reliable connections are essential. Its combination of durable materials, including non-alloy steel, brass, and gunmetal, ensures a long-lasting, secure connection, even under demanding conditions.
Key Features
Pressing Indicator: Features a clear visual indicator to confirm the fitting has been properly pressed, ensuring a secure and leak-proof connection.
Leak Detection: Leaks if unpressed, enabling installers to quickly identify fittings that haven’t been properly installed before system pressurisation, enhancing safety.
Zinc-Plated Exterior: The non-alloy steel exterior is zinc-plated, providing superior corrosion resistance, making it suitable for a wide range of environments, including outdoor applications.
Union Nut Made of Brass & Adaptor Made of Gunmetal: Ensures durability and strength for reliable performance, with materials that are resistant to corrosion and wear.
CIIR Seal Ring & EPDM Flat Gasket: The black CIIR (chlorinated isobutylene-isoprene rubber) seal ring and EPDM flat gasket ensure a reliable, long-lasting seal, offering temperature resistance between 0–100°C, making the union suitable for high-temperature systems.
Pressing Socket with Protection Plug: The pressing socket includes a transparent protection plug to prevent contamination and damage during transport and storage.
Easy Installation & Disconnection: The union design allows for easy disconnection and reconnection, offering flexibility in systems where maintenance or future modifications may be required.
SKU
Art. no.
DN
d, ø (mm)
R (inch)
G (inch)
L (cm)
H (cm)
487168
25329
20 / 25
22
1
1
6.9
4.8
487165
25330
12 / 15
15
1/2
3/4
6.1
4.1
487166
25332
15
18
1/2
3/4
6.1
4.1
487167
25335
20
22
3/4
1
6.8
4.7
487169
25337
25
28
1
1 1/4
7.5
5.2
487170
25338
32
35
1 1/4
1 1/2
8
5.4
487171
25339
40
42
1 1/2
1 3/4
8.5
5.5
487172
25340
50
54
2
2 3/8
9.7
6.2
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
