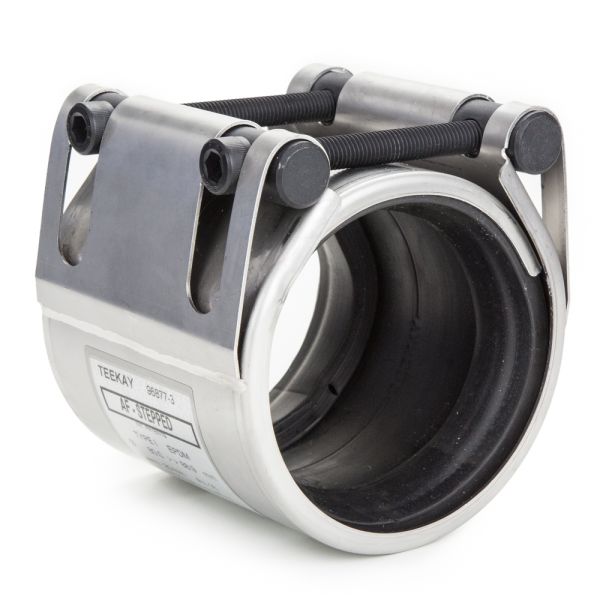

Axiflex Reducing Coupling Plastic / Metal - Below Ground

Useful Information

Axiflex stepped couplings, from Teekay, are used to connect plain-end pipe lengths together that have different outer diameters as well as different materials.

These couplings are suitable for use with pipe materials including carbon steel, stainless steel, copper, cast and ductile iron, MDPE, HDPE, PVC, uPVC and ABS.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners AISI 316/316L
Gasket EPDM/NBR/H-NBR/FKM/VMQ
Pressure Rating up to 16 bar
Type 2 - Below ground
Sizes 108mm x 114.3mm - 160mm x 168.3mm



teekay-axiflex-step-coupling

Product Code D1 (mm) W1 (mm) PN D2 (mm) D3 (mm) No. of Screws Screw Size Weight (kg)
402958 108 x 114.3 110 16 123 x 129.3 158 2 M10 2.00
402959 110 x 112 110 16 125 x 127 158 2 M10 2.00
402960 110 x 114.3 110 16 125 x 129.3 158 2 M10 2.00
402961 150 x 160 110 16 165 x 175 198 2 M10 2.40
402962 160 x 168.3 110 16 175 x 183.3 212 2 M10 2.60



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402958TK Axiflex Coupling Step T2 16 Bar 114.3mm x 108mm £199.81 40% £119.89
402959TK Axiflex Coupling Step T2 16 Bar 112mm x 110mm £199.81 40% £119.89
402960TK Axiflex Coupling Step T2 16 Bar 114.3mm x 110mm £199.81 40% £119.89
402961TK Axiflex Coupling Step T2 16 Bar 160mm x 150mm £233.71 40% £140.23
402962TK Axiflex Coupling Step T2 16 Bar 168.3mm x 160mm £233.71 40% £140.23
