Axiflex Offset Coupling Plastic / Metal - Above Ground

Useful Information

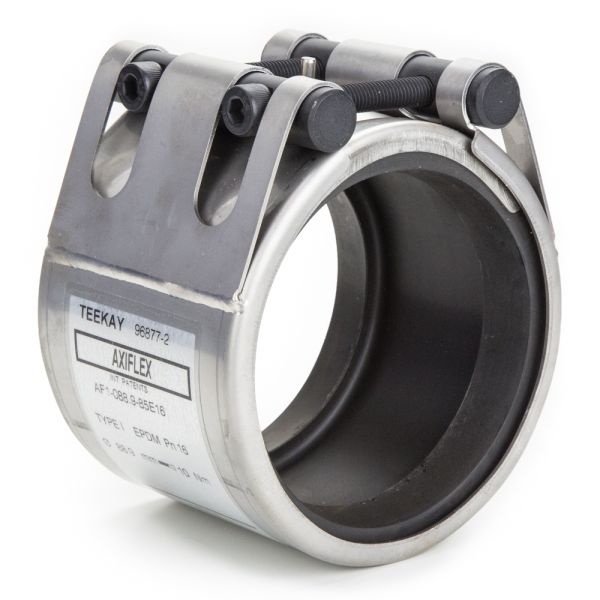

Axiflex couplings, from Teekay, are used to connect plain-end pipe lengths together allowing for expansion and contraction, but mainly for angulation of pipe.

These couplings are suitable for use with pipe materials including carbon steel, stainless steel, copper, cast and ductile iron, MDPE, HDPE, PVC, uPVC, ABS and more.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners Alloy Steel, Coated
Gasket EPDM/NBR/H-NBR/FKM/VMQ
Pressure Rating up to 16 bar
Type 1 - Above ground
Sizes 48.3mm - 168.3mm



teekay-axiflex-coupling

Product Code D1 (mm) W1 (mm) PN W2 (mm) D2 (mm) D3 (mm) Screw Size Weight (kg)
402974 48.3 85 16 42 70 87 2 x M8 1.00
402975 54 85 16 42 74 93 2 x M8 1.00
402976 60.3 85 16 42 80 99 2 x M8 1.10
402977 63 85 16 42 83 102 2 x M8 1.10
402978 73 85 16 42 93 112 2 x M8 1.30
402979 76.1 85 16 42 96 115 2 x M8 1.30
402980 88.9 85 16 42 109 128 2 x M8 1.50
402981 104 85 16 42 124 143 2 x M8 1.60
402982 108 85 16 42 128 147 2 x M8 1.60
402983 110 85 16 42 130 149 2 x M8 1.60
402984 114.3 85 16 42 134 153 2 x M8 1.60
402985 118 85 16 42 138 157 2 x M8 1.70
402986 133 110 16 67 155 177 2 x M10 2.30
402987 139.7 110 16 67 162 184 2 x M10 2.30
402988 141.3 110 16 67 163 186 2 x M10 2.30
402989 154 110 16 67 176 198 2 x M10 2.40
402990 159 110 16 67 181 203 2 x M10 2.50
402991 165 110 16 67 187 209 2 x M10 2.50
402992 168.3 110 16 67 190 212 2 x M10 2.50



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402974TK Axiflex Coupling T1 16 Bar 48.3mm £87.35 40% £52.41
402975TK Axiflex Coupling T1 16 Bar 54mm £87.67 40% £52.60
402976TK Axiflex Coupling T1 16 Bar 60.3mm £87.67 40% £52.60
402977TK Axiflex Coupling T1 16 Bar 63mm £87.67 40% £52.60
402978TK Axiflex Coupling T1 16 Bar 73mm £98.32 40% £58.99
402979TK Axiflex Coupling T1 16 Bar 76.1mm £98.32 40% £58.99
402980TK Axiflex Coupling T1 16 Bar 88.9mm £98.32 40% £58.99
402981TK Axiflex Coupling T1 16 Bar 104mm £107.35 40% £64.41
402982TK Axiflex Coupling T1 16 Bar 108mm £107.35 40% £64.41
402983TK Axiflex Coupling T1 16 Bar 110mm £107.35 40% £64.41
402984TK Axiflex Coupling T1 16 Bar 114.3mm £107.35 40% £64.41
402985TK Axiflex Coupling T1 16 Bar 118mm £107.35 40% £64.41
402986TK Axiflex Coupling T1 16 Bar 133mm £141.92 40% £85.15
402987TK Axiflex Coupling T1 16 Bar 139.7mm £141.92 40% £85.15
402988TK Axiflex Coupling T1 16 Bar 141.3mm £141.92 40% £85.15
402989TK Axiflex Coupling T1 16 Bar 154mm £157.66 40% £94.60
402990TK Axiflex Coupling T1 16 Bar 159mm £157.66 40% £94.60
402991TK Axiflex Coupling T1 16 Bar 165mm £157.66 40% £94.60
402992TK Axiflex Coupling T1 16 Bar 168.3mm £157.66 40% £94.60
