Repair Coupling Plastic / Metal - Below Ground
Useful Information
Repair couplings, from Teekay, are used to fix damaged pipework without the need to depressurize the system.
These couplings are suitable for use with plastic and metal pipe including carbon steel, cast and ductile iron, stainless steel, copper, cuniferm GRP, asbestos cement, HDPE, MDPE, PVC, PVC-U and ABS.

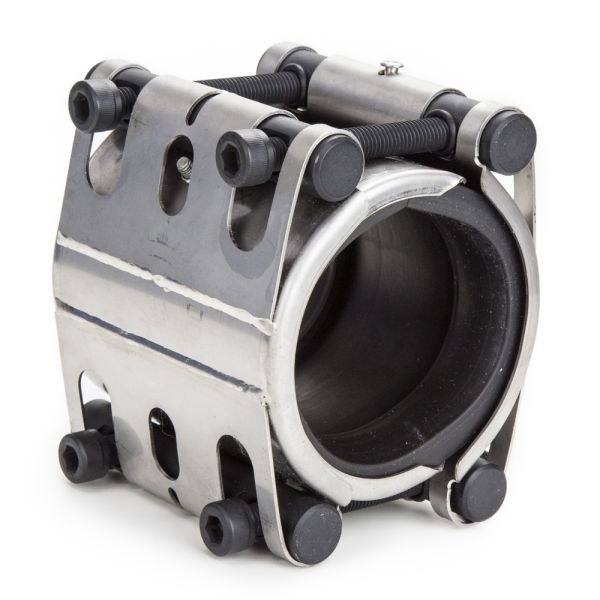

Please note: The product image in this category depicts SKU's 402933, 402934 and 402935. Our other repair couplings have 2 screws instead of 4.
| Manufacturer | Teekay |
| Casing | AISI 304/DIN 1.4301 |
| Fasteners | AISI 316/316 |
| Gasket | EPDM/NBR/H-NBR/FKM/VMQ |
| Pressure Rating | up to 16 bar |
| Type | 2 - Below ground |
| Sizes | 44mm - 225mm |
| Product Code | D1 (mm) | W1 (mm) | PN | W2 (mm) | D2 (mm) | D3 (mm) | No. of Screw | Approx. Weight (kg) |
| 402933 | 44 - 54 | 85 | 16 | 42 | 64 - 74 | 102 - 112 | 4 | 2.20 |
| 402934 | 55 - 65 | 85 | 16 | 42 | 75 - 85 | 113 - 123 | 4 | 2.60 |
| 402935 | 70 - 80 | 85 | 16 | 42 | 90 - 100 | 128 - 138 | 4 | 2.80 |
| 402936 | 85 - 95 | 140 | 16 | 80 | 113 - 123 | 173 - 183 | 2 | 2.50 |
| 402937 | 105 - 115 | 140 | 16 | 80 | 133 - 143 | 193 - 203 | 2 | 2.80 |
| 402938 | 131 - 141 | 140 | 16 | 80 | 159 - 169 | 219 - 229 | 2 | 3.00 |
| 402939 | 159 - 169 | 210 | 16 | 120 | 201 - 211 | 261 - 271 | 2 | 4.50 |
| 402940 | 215 - 225 | 210 | 16 | 120 | 257 - 267 | 317 - 327 | 2 | 5.85 |
