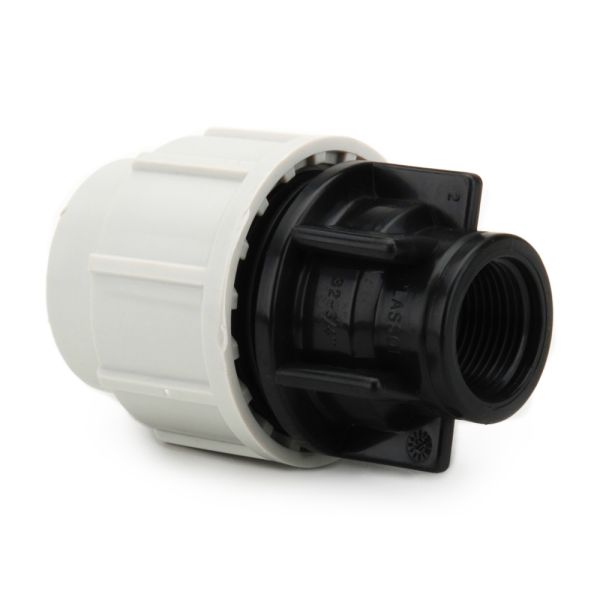

Plasson Compression Adaptor Female Parallel Thread
Useful Information
Technical Specification
- Size Range: 25mm x 3/4", 25mm x 1"
- Pressure Rating: Up to 16 bar
- Thread Type: BSPP (British Standard ipe Parallel) – Female
- Applications: Potable water, metering connections, washer-sealed fittings
- Pipe Compatibility: MDPE
Description
The Plasson Compression Adaptor Female Parallel Thread allows for a reliable connection between MDPE pipe and male parallel-threaded fittings, such as those found on certain valves or plumbing components. With a compression fitting on the MDPE side and a female BSPP (parallel) thread on the other, this adaptor is ideal for applications where a flat-faced washer seal is used. Manufactured by Plasson and pressure rated up to 16 bar, it’s suitable for use in potable water systems. Available in sizes from 25mm x ¾" to 25mm x 1".
Key Features & Benefits
- Connects MDPE pipe to male BSPP (parallel) threaded fittings
- Female parallel thread for washer-sealed connections
- Compression fitting for quick, tool-free MDPE connection
- Manufactured by Plasson – high-quality, WRAS-approved fittings
- Ideal for water meters, valves, and flat-faced fittings
| SKU | d (mm) | G (inch) | H (mm) | E (mm) | I (mm) | I2 (mm) |
| 352361 | 25 | 3/4 | 88 | 54 | 63 | 12 |
| 352362 | 25 | 1 | 88 | 54 | 63 | 14 |
| 352363 | 32 | 1 | 99 | 64 | 72 | 14 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
