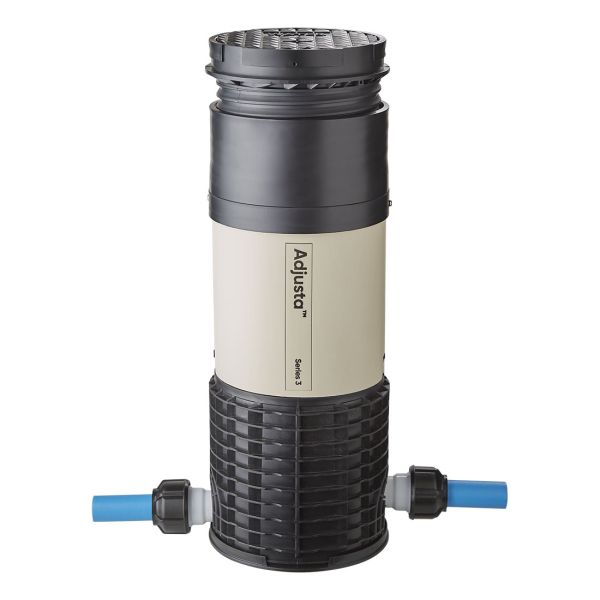

This enhanced boundary box offers dependable water meter housing with upgraded functionality for modern potable water systems. Fitted with a round lid featuring a keyhole for secure access, it incorporates a newly developed ¼ turn valve with a full bore for fast and reliable flow control via a simple 90-degree rotation. With Philmac’s 3G Slide and Tighten™ technology, assembly on non-contaminated land is swift and tool-free. The unit supports 25mm and 32mm connections and includes a double-check valve as standard to ensure Category 3 backflow protection.
Key Features & Benefits
Philmac's new 3G connection for non-contaminated land
WRAS-approved components for assured water safety
Frost protection to -20° with expanded polyethylene foam pad
Grade B loading: exceeds 5-tonne rating per WIS 4-37-01
Designed lifespan of 50+ years
ISO 9001, ISO 14001 & ISO 45001 certified
Adjustable height and pitch whilst maintaining loading capacity, remains level for secure installation
SKU
Supplier Code
Size (mm)
Connection Type
A (mm)
B (mm)
C (mm)
D (mm)
Weight (kg)
489571
LUBA3001
25mm
MDPE
580 - 790
210
216
516
4.47
489575
LUBA3011
32mm
MDPE
580 - 790
210
216
516
4.53
489579
LUBA3005
25mm
Compression
580 - 790
210
216
308
4.42
489583
LUBA3015
32mm
Compression
580 - 790
210
216
347
4.45
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
