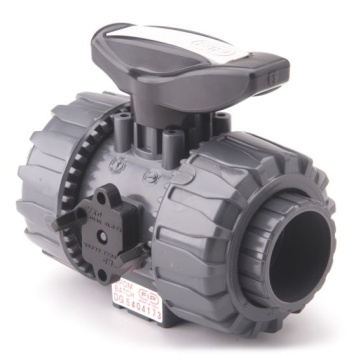

Durapipe 2-Way VK Ball Valves

More Info

Featuring FIP’s patented DualBlock technology, the valve is engineered to deliver enhanced operational safety by mechanically securing the union nuts once tightened, helping to prevent loosening caused by vibration, pressure variation or thermal expansion.

Technical Specification

  • Manufacturer: Durapipe/FIP
  • Materials:
    • Body & Handle: Unplasticised Polyvinyl Chloride (PVCu)
    • Seals: Ethylene Propylene Diene Monomer Rubber (EPDM)
  • Sizes: 1/2" to 4"
  • Pressure rating: 16 bar at 20°C
  • Temperature range: 5°C to 60°C
  • Connection type: Union Ends
  • Operation: Quater-turn manual operation
  • Installation Orientation: Horizontal or vertical
  • Features: Patented DualBlock and Seat Stop systems
  • Standards:
    • WRAS Approved
    • BSI Kitemark-certified

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Loading...
  1. DP VKD Ball Valve EPDM
    Durapipe PVCu VKD Ball Valve EPDM Inch

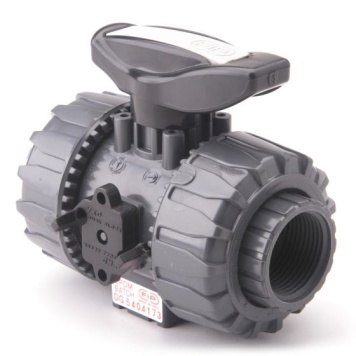

  2. DP VKD Ball Valve EPDM Threaded
