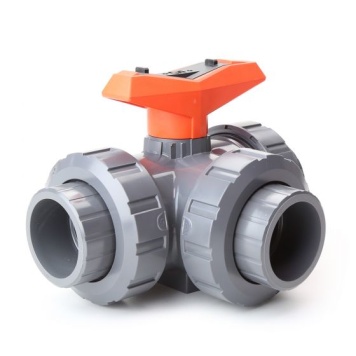

+GF+ 3-Way Ball Valves
The Georg Fischer 3-way ball valves are high-quality flow control valves designed for applications that require diversion, mixing, or multi-directional control within PVCu piping systems
-
The T-port configuration allows multiple flow paths depending on valve position, making it suitable for more complex arrangements than standard 2-way isolation valves.
-
The L-port configuration provides a clear, defined flow direction, making it ideal for switching and selection applications within PVCu pipework systems.
Technical Specification
- Manufacturer: Georg Fischer
- Materials:
- Body & Handle: Unplasticised Polyvinyl Chloride (PVCu)
- Seals: EPDM
- Ball Seals: PTFE
- Sizes: 3/8" to 2"
- Pressure rating: 10 bar at 20°C
- Temperature range: 5°C to 60°C
- Port Configuration: "T" or "L" Port
- Connection type: Union (Solvent Weld/Threaded) and Spigot Ends
- Features: Lockable lever, integrated mounting inserts, manual spring return lever, 360° rotation, turn limiter included
T Port Configuration
L Port Configuration
