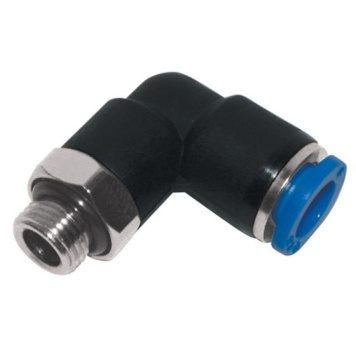

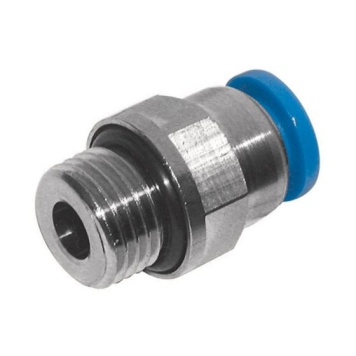

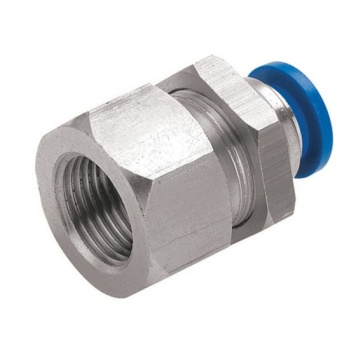

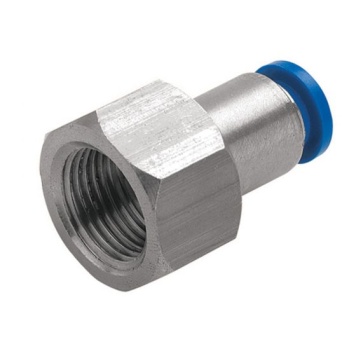

Tube x BSPP Thread
Our range of Tube x BSPP Thread One-Touch Push-In Fittings from Kelm offers a reliable, high-performance solution for compressed air and vacuum applications. Designed to deliver fast, tool-free installation, these fittings provide a secure and efficient way to connect pneumatic tubing to standard BSPP threaded ports across a wide variety of systems.
Built around Kelm’s commitment to product excellence, each fitting combines durable materials, precision engineering, and intuitive one-touch functionality. Whether you're assembling new pneumatic lines or carrying out essential maintenance, these fittings keep everything simple, secure, and consistent.
Key Features & Technical Specifications
- Manufactured by Kelm: Trusted fluid power brand with strong focus on quality
- Maximum Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Applicable Medium: Air and vacuum only
- Working Pressure Range: 0–150 PSI (0–9.9 Kgf/cm² / 0–990 KPa / 10 bar)
- Negative Pressure Capability: -29.5 in Hg (-750 mmHg / -750 Torr)
- Working Temperature Range: 0°C to 60°C (32°F to 140°F)
Product Benefits
- Instant push-to-connect assembly thanks to the one-touch collet design
- Six-angle internal wrench processing makes installation easy, even in tight or awkward spaces
- Quick, positive disconnection via a robust POM engineering-plastic sleeve - simply press and pull
- Secure sealing with pre-applied O-ring on the thread, reducing installation time
- Nickel-plated brass body provides excellent corrosion resistance and prevents contamination for longer service life
Where These Fittings Are Used
These Tube x BSPP thread fittings are ideal for:
- Pneumatic control systems
- Automation and assembly lines
- Packaging machinery
- General industrial compressed air distribution
- Light vacuum applications
- Retrofit and maintenance work in restricted spaces
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
