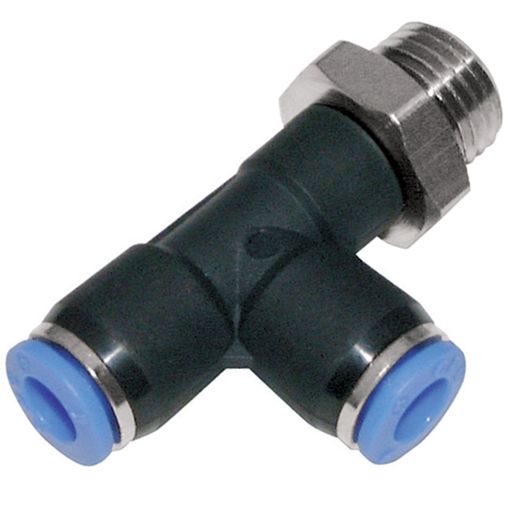

Kelm Swivel Tee 90° Run M
Useful Information
Technical Specification
- Material: Nickel-plated brass with engineering plastic (POM) sleeve
- Media: Air and vacuum only
- Thread Type: BSPP Male
- Max. Working Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Connection Type: One-touch push-in (metric tube) x BSPP male thread
- Negative Pressure Capability: -750mm Hg (10 Torr)
Description
This 90° swivel tee is engineered for quick, tool-free connection in pneumatic systems, offering a rotating male run leg for added flexibility in confined or fixed piping configurations. Its durable construction features a nickel-plated brass body and a POM plastic sleeve for dependable long-term use, even in demanding industrial settings. Designed specifically for air and vacuum media, it supports efficient system assembly with secure sealing via built-in O-ring.
Key Features & Benefits
- One-touch push-in fitting for rapid installation and disconnection
- BSPP male run leg swivels to simplify hose routing in tight spaces
- High corrosion resistance due to nickel-plated brass body
- Pre-treated threads (O-ring) for secure, leak-resistant sealing
- Ideal for pneumatic applications requiring clean, efficient airflow
- Supports both positive and negative pressure systems
- Suitable for air and vacuum only, ensuring application-specific safety
| Product Code | D (mm) | R (Thread) | P (mm) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | d (mm) |
| 366427 | 6 | 1/8 | 13 | 5.5 | 27 | 15.6 | 19.8 | 9.5 | 12 | 3.2 |
| 366428 | 6 | 1/4 | 13 | 6 | 27.5 | 15.6 | 19.8 | 9.5 | 14 | 3.2 |
| 366429 | 8 | 1/4 | 14.5 | 6 | 29.5 | 18 | 23 | 10.2 | 14 | 3.2 |
