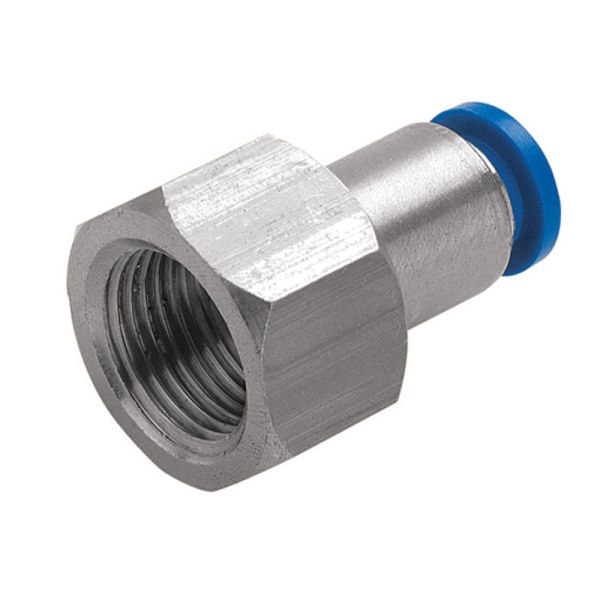

Kelm Stud Coupling F
Useful Information
Technical Specification
- Material: Nickel-Plated Brass with POM Sleeve
- Media: Air and Vacuum Only
- Thread Type: BSPP Female
- Max. Working Pressure: 10 bar
- Operating Temperature Range: 0°C to +60°C
- Connection Type: One-touch Push-in (Tube) x BSPP Female Thread
- Negative Pressure: -750mm Hg (10 Torr)
Description
This compact push-in stud coupling with BSPP female thread enables fast, tool-free connection and disconnection of pneumatic tubing, supporting efficient installation and maintenance. Built with a corrosion-resistant nickel-plated brass body and a durable POM release sleeve, it is ideal for use in compressed air and vacuum applications. Its internal hex design allows for easy installation even in confined or awkward spaces, making it a practical choice across industrial environments.
Key Features & Benefits
- One-touch push-fit design for rapid installation and removal
- Female BSPP thread ideal for integration into existing threaded systems
- Engineered for use in tight spaces with internal hex configuration
- Pre-treated threads with O-ring for leak-free sealing
- High-quality nickel-plated brass ensures durability and anti-contamination
- Compatible with air and vacuum systems only
| Product Code | D (mm) | R (Thread) | P (mm) | A (mm) | B (mm) | C (mm) | H (mm) | G (mm) |
| 366351 | 4 | 1/8 | 11 | 7 | 24 | 16 | 14 | 9 |
| 366352 | 4 | 1/4 | 11 | 7.5 | 26.5 | 16 | 17 | 9 |
| 366353 | 6 | 1/8 | 13 | 7 | 27 | 17 | 14 | 8.5 |
| 366354 | 6 | 1/4 | 13 | 7.5 | 26 | 17 | 17 | 9.5 |
| 366355 | 6 | 3/8 | 13 | 8 | 28.5 | 17 | 19 | 10 |
| 366356 | 8 | 1/8 | 15 | 7 | 28 | 18 | 17 | 11 |
| 366357 | 8 | 1/4 | 15 | 7.5 | 28 | 18 | 17 | 12 |
| 366358 | 8 | 3/8 | 15 | 8 | 28.5 | 18 | 19 | 14 |
| 366359 | 8 | 1/2 | 15 | 10 | 31 | 18 | 24 | 16 |
| 366360 | 10 | 1/8 | 17 | 7 | 29.5 | 19.3 | 19 | 14 |
| 366361 | 10 | 1/4 | 17 | 7.5 | 29.5 | 19.3 | 19 | 12 |
| 366362 | 10 | 3/8 | 17 | 8 | 32 | 19.3 | 21 | 14 |
| 366363 | 10 | 1/2 | 17 | 10 | 32 | 19.3 | 24 | 16 |
| 366364 | 12 | 1/4 | 20 | 7.5 | 31.5 | 21 | 21 | 12 |
| 366365 | 12 | 3/8 | 20 | 8 | 33 | 21 | 21 | 14 |
| 366366 | 12 | 1/2 | 20 | 10 | 33 | 21 | 24 | 16 |
