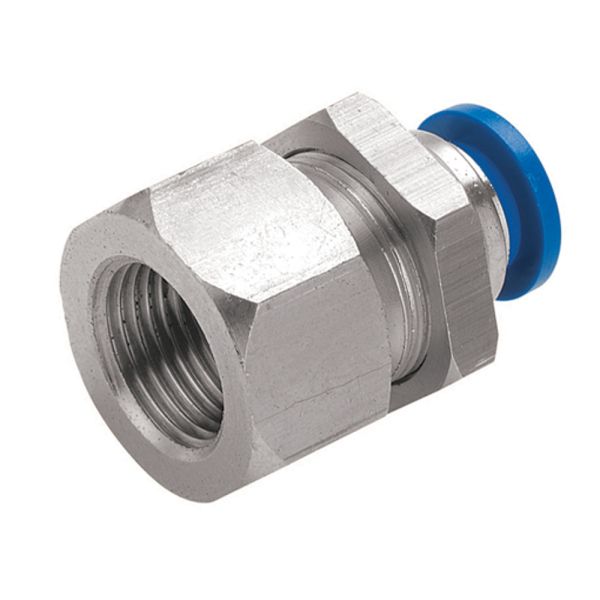

Kelm Bulkhead Coupling F
Useful Information
Technical Specification
- Material: Nickel-Plated Brass with POM Sleeve
- Media: Air and Vacuum Only
- Thread Type: BSPP Female
- Max. Working Pressure: 10 bar
- Operating Temperature Range: 0°C to +60°C
- Connection Type: One-touch Push-in (Tube) x BSPP Female Thread (Bulkhead)
- Negative Pressure: -750mm Hg (10 Torr)
Description
This bulkhead-style push-in coupling is purpose-built for panel or enclosure mounting, enabling secure pneumatic connections through walls or bulkheads. Designed for compressed air and vacuum use, it combines a one-touch push-fit connection with a BSPP female thread for streamlined installation. The nickel-plated brass body delivers robust corrosion resistance, while the POM release sleeve allows effortless tube disconnection. Its integrated mounting thread and nut ensure a secure and stable fit within panels, making it an ideal solution for equipment enclosures and control panels.
Key Features & Benefits
- Push-in design enables quick connection and disconnection of tubing
- Bulkhead configuration allows easy mounting through panels or enclosures
- Female BSPP thread integrates smoothly with threaded fittings
- Pre-applied sealing with O-ring ensures leak prevention
- Durable nickel-plated brass body extends product lifespan and resists contamination
- Compatible exclusively with air and vacuum media
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | G (mm) | H1 (mm) | H2 (mm) | M |
| 366367 | 4 | 10 | 1/8 | 9 | 26.5 | 16 | 11 | 14 | 14 | M12x1 |
| 366368 | 4 | 10 | 1/4 | 10 | 28.5 | 16 | 12 | 17 | 14 | M12x1 |
| 366369 | 6 | 12.8 | 1/8 | 9 | 27.5 | 17 | 11 | 17 | 17 | M14x1 |
| 366370 | 6 | 12.8 | 1/4 | 10 | 29 | 17 | 12 | 17 | 17 | M14x1 |
| 366371 | 6 | 12.8 | 3/8 | 12 | 31 | 17 | 14 | 19 | 17 | M14x1 |
| 366372 | 6 | 12.8 | 1/2 | 14 | 34 | 17 | 16 | 24 | 17 | M14x1 |
| 366373 | 8 | 13.8 | 1/8 | 9 | 28 | 18 | 11 | 17 | 19 | M16x1 |
| 366374 | 8 | 13.8 | 1/4 | 10 | 29 | 18 | 12 | 17 | 19 | M16x1 |
| 366375 | 8 | 13.8 | 3/8 | 12 | 31.5 | 18 | 14 | 19 | 19 | M16x1 |
| 366376 | 8 | 13.8 | 1/2 | 14 | 35 | 18 | 16 | 24 | 19 | M16x1 |
| 366377 | 10 | 16.8 | 1/8 | 9 | 29.3 | 19.3 | 11 | 21 | 24 | M20x1 |
| 366378 | 10 | 16.8 | 1/4 | 10 | 34.8 | 19.3 | 12 | 21 | 24 | M20x1 |
| 366379 | 10 | 16.8 | 3/8 | 12 | 33.3 | 19.3 | 14 | 21 | 24 | M20x1 |
| 366380 | 10 | 16.8 | 1/2 | 14 | 35.3 | 19.3 | 16 | 24 | 24 | M20x1 |
| 366381 | 12 | 19.8 | 1/4 | 10 | 33.5 | 21 | 12 | 21 | 26 | M22x1 |
| 366382 | 12 | 19.8 | 3/8 | 12 | 36 | 21 | 14 | 21 | 26 | M22x1 |
| 366383 | 12 | 19.8 | 1/2 | 14 | 38 | 21 | 14 | 24 | 26 | M22x1 |
