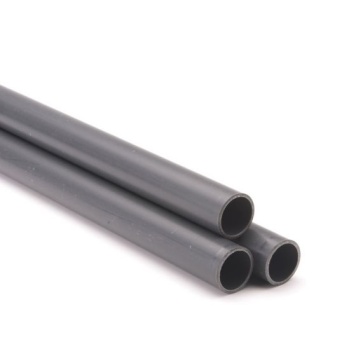

Designed for high-performance fluid handling, this metric PVCu pipe offers consistent dimensional accuracy and chemical resistance, making it ideal for use in a wide range of industrial and commercial systems. Whether for potable water distribution, chemical transfer, or cooling applications, this pipework provides long-term reliability and excellent flow performance. Available in standard dark grey or clear options, it meets rigorous quality standards and is fully WRAS and BSI Kitemark approved.
Technical Specification
Material: Unplasticised polyvinyl chloride (PVCu)
Sizes Available: 16mm to 315mm (metric outer diameter)
Pressure Ratings: 10, 16 bar (depending on size and class)
Operating Temperature Range: 5°C to 60°C
Colour: Standard dark grey (RAL 7011); also available in clear
Surface Finish: Smooth bore for reduced pressure loss and scale build-up
Standards:
BS EN ISO 1452-1:2009 (General) BS EN ISO 1452-2:2009 (Pipes)
Approvals:
WRAS Approved (Approval No. 2010508)
BSI Kitemark Certified (Licence No. KM60041)
Chemical Resistance: Excellent compatibility with a wide range of dilute acids, alkalis, and salts
Note: Not suitable for use with compressed air
Installation Overview
Cutting the Pipe: Use a fine-toothed saw or plastic pipe cutter to make a clean, square cut, Ensure the cut end is free of burrs or sharp edges.
Chamfering and Marking:Chamfer the pipe end at approximately 3mm x 45° to avoid scraping solvent cement during insertion. Mark the insertion depth on the pipe to verify full engagement during assembly.
Surface Preparation: Use coarse emery cloth to abrade the pipe end and fitting socket, Clean both surfaces thoroughly with a lint-free cloth moistened in MEK cleaner.
Applying Solvent Cement: Use a clean brush to apply an even layer of cement to both the pipe and fitting. Quickly insert the pipe into the fitting fully, without twisting. Hold firmly for several seconds to allow initial bonding.
Curing: Wipe off any excess cement from the joint exterior. Allow a minimum of 24 hours at 20°C before pressure testing. Ensure adequate ventilation during and after installation to disperse solvent fumes.
Pressure Testing: Conduct pressure testing at 1.5 times the system’s rated pressure, only after all joints have cured fully.
