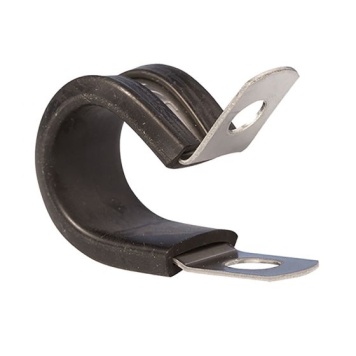

Jubilee P Clips

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

Manufactured by Jubilee
Material: zinc plated mild steel & stainless steel
Highly resistant to corrosion
Suitable for agricultural, automotive, and industrial applications
Band width of 12.7mm
Fastened using M4/5 bolts
Each product sold separately

Product Code	Max Diameter (mm)	Min Diameter (mm)
387137	6	4.5
387138	8	5.5
387139	10	7.5
387140	11	8.5
387141	12	9.5
387142	14	11.5
387143	15	12.5
387144	16	13.5
387145	17	14.5
387146	18	15.5
387147	19	16.5
387148	20	17.5
387149	21	18.5
387150	22	19.5
387151	23	20.5
387152	24	21.5
387153	27	24.5
387154	29	26.5
387155	30	27.5
387156	31	28.5
387157	32	29.5
387158	37	34.5
387159	42	39.5
387160	46	43.5

Useful Info:

These Jubilee P Clips have an operating temperature range of -50°C to 150°C

Each clip is sold separately.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
