P Clips Stainless Steel

Loading...

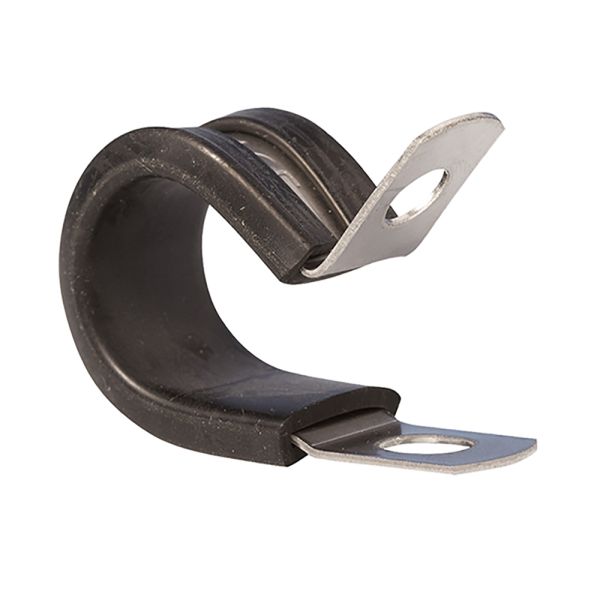

main product photo
More Info
Useful Information

Technical Specification

  • Brand: Jubilee
  • Material: 304 stainless steel with EPDM rubber liner
  • Corrosion Resistance: 1,000-hour NSS test
  • Temperature Range: -50°C to +150°C
  • Band Width: 12.7mm
  • Fastening Method: M6 bolts
  • Manufactured to: DIN 3016
  • Minimum Diameter: 4.5mm
  • Maximum Diameter: 46mm
  • Sold Individually

Description

Engineered for strength and longevity, these Jubilee P Clips are formed from a single piece of 304 stainless steel, offering superior corrosion resistance and structural integrity. Each clip is lined with EPDM rubber, which provides secure gripping, noise insulation, and effective vibration damping. The stepped band design ensures the clip sits flush with its liner, while the elongated upper hole simplifies installation. Ideal for harsh environments, these clips are trusted in automotive, industrial, and agricultural applications where durability is critical.

Key Features & Benefits

  • Manufactured from high-grade 304 stainless steel for enhanced corrosion protection
  • EPDM liner delivers excellent vibration damping, noise insulation, and UV resistance
  • Operates within a wide temperature range of -50°C to +150°C
  • Ideal for use in demanding environments including marine, automotive, and plant machinery
  • Elongated mounting hole for easier installation
  • Halogen-free and compliant with DIN 3016 standards
  • One-piece band construction ensures maximum strength and reliability
  • Wide range of sizes available to suit varied pipe, tube, or cable diameters
  • Sold individually to allow tailored ordering



Product Code Max Diameter (mm) Min Diameter (mm)
387162 7 4.5
387163 8 5.5
387164 10 7.5
387165 11 8.5
387166 12 9.5
387167 14 11.5
387168 15 12.5
387169 16 13.5
387170 16 14.5
387171 18 15.5
387172 19 16.5
387173 20 17.5
387174 21 18.5
387175 22 19.5
387176 23 20.5
387177 24 21.5
387178 27 26.5
387179 29 26.5
387180 30 27.5
387181 31 28.5
387182 32 29.5
387183 37 34.5
387184 42 39.5
387185 46 43.5
